Center Console Trim Disassembly/Reassembly

NOTE: Take care not to scratch the armrest.

Remove the center console trim (see step 2 ).
Disassemble the center console trim.
- 1 Disconnect the accessory socket connector (A) and light bulb socket (B), and detach the harness clips (C).
- 2 Using a T20 Torx bit, remove the screws (D), then remove the console vent (E) and console duct (F).
- 3 Using a T20 Torx bit, remove the screws (G), then remove the hooks (H).

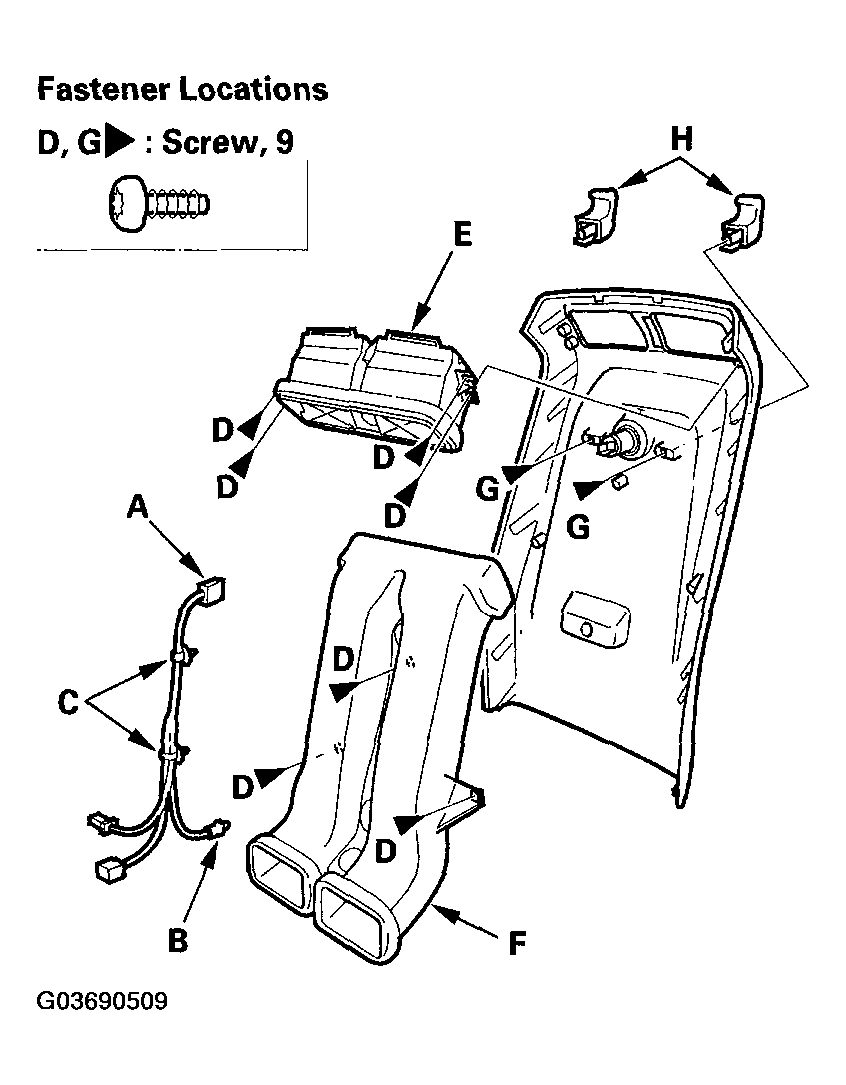

  Fig 1: Disassembling Center Console Trim
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reassemble the console in the reverse order of disassemble, and make sure the accessory socket connector the and light bulb socket are plugged in properly.
