Center Console Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.

NOTE:

Put on gloves to protect your hands.
Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the front seat, dashboard, and related parts.

Remove the dashboard center lower cover (see DASHBOARD CENTER LOWER COVER REMOVAL/INSTALLATION ).

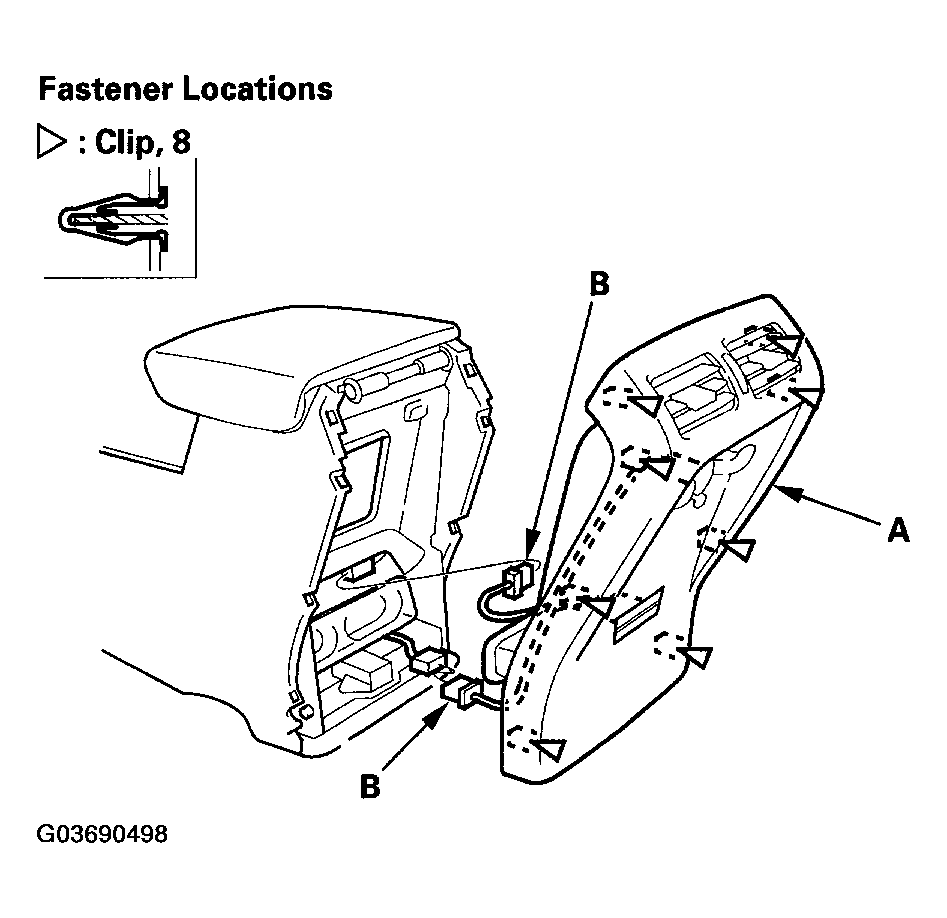

Detach the clips, then remove the console trim (A). Disconnect the subharness connectors (B), and detach the harness slip.

Fig 1: Removing Console Trim
Courtesy of AMERICAN HONDA MOTOR CO., INC.

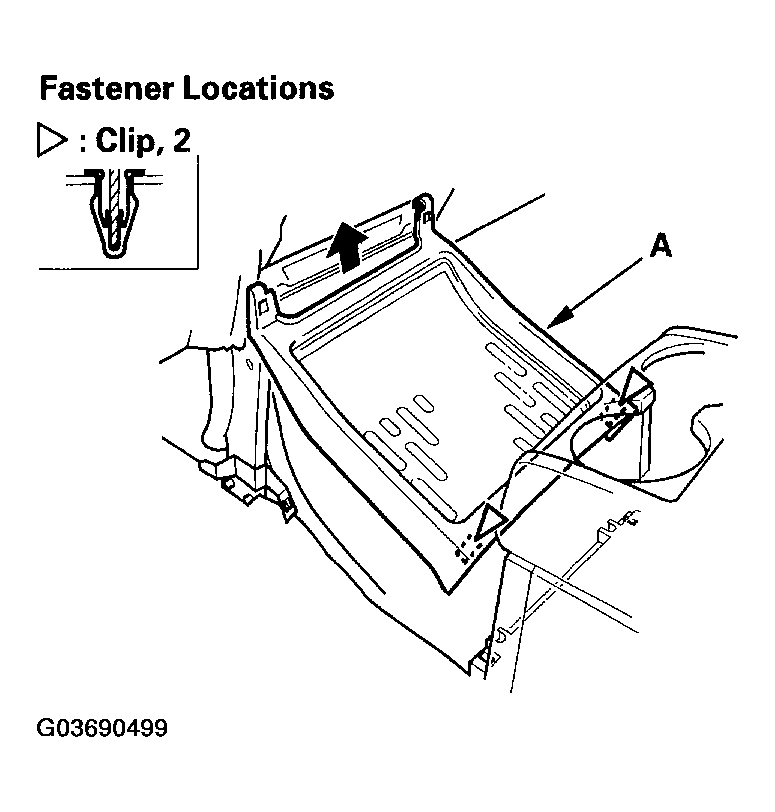

Pull the center floor tray (A) up by hand to detach the clips, then remove it.

Fig 2: Pulling Center Floor Tray
Courtesy of AMERICAN HONDA MOTOR CO., INC.

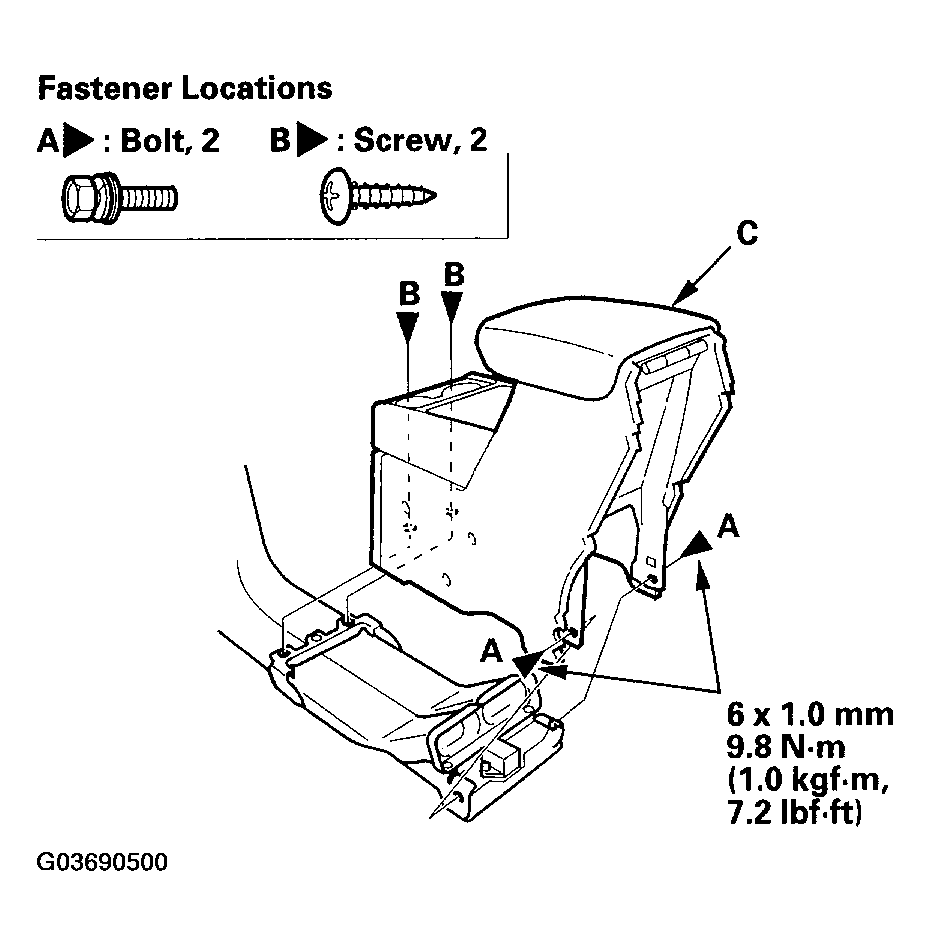

Remove the bolts (A) and screws (B), then remove the center console (C).

Fig 3: Removing Center Console With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the console in the reverse order of removal, and note these items.
- Replace any damaged clips.
- Make sure the connectors are plugged in properly.
