Transmission Cutaway View

NOTE: The illustration shows the 4WD transmission; the 2WD transmission does not have the transfer mechanism.

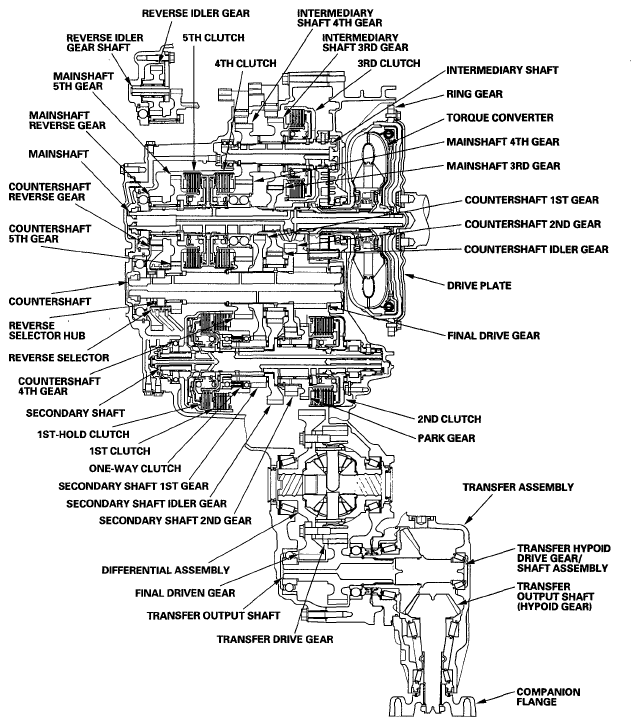

Fig 1: Cutaway View Of 4WD Transmission
G05593791Courtesy of AMERICAN HONDA MOTOR CO., INC.
