Automatic Transmission
>>
Special Tools
Special Tools

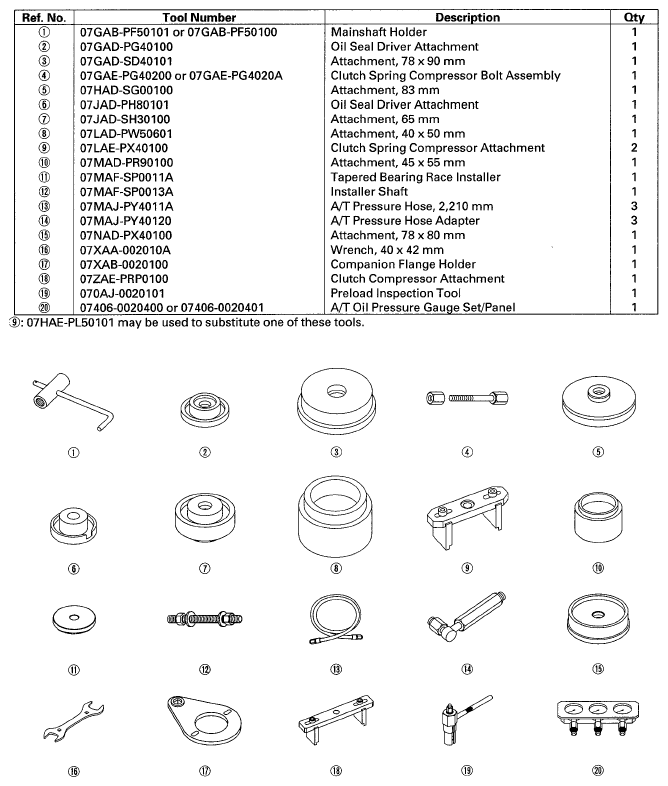

Fig 1: Identifying Automatic Transmission Special Tools (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

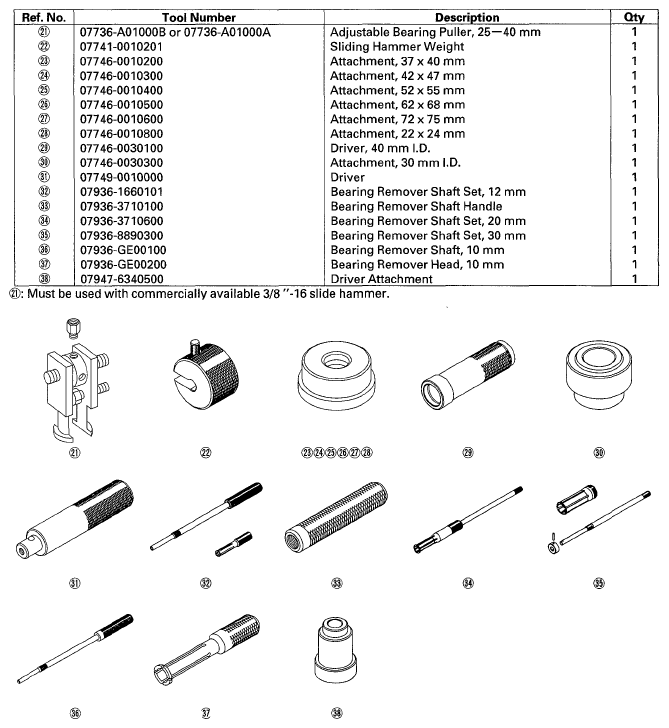

Fig 2: Identifying Automatic Transmission Special Tools (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
