Honda
>>
2008
>>
Pilot SE, 3.5 YF2
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belts
>>
Component Location Index
Component Location Index

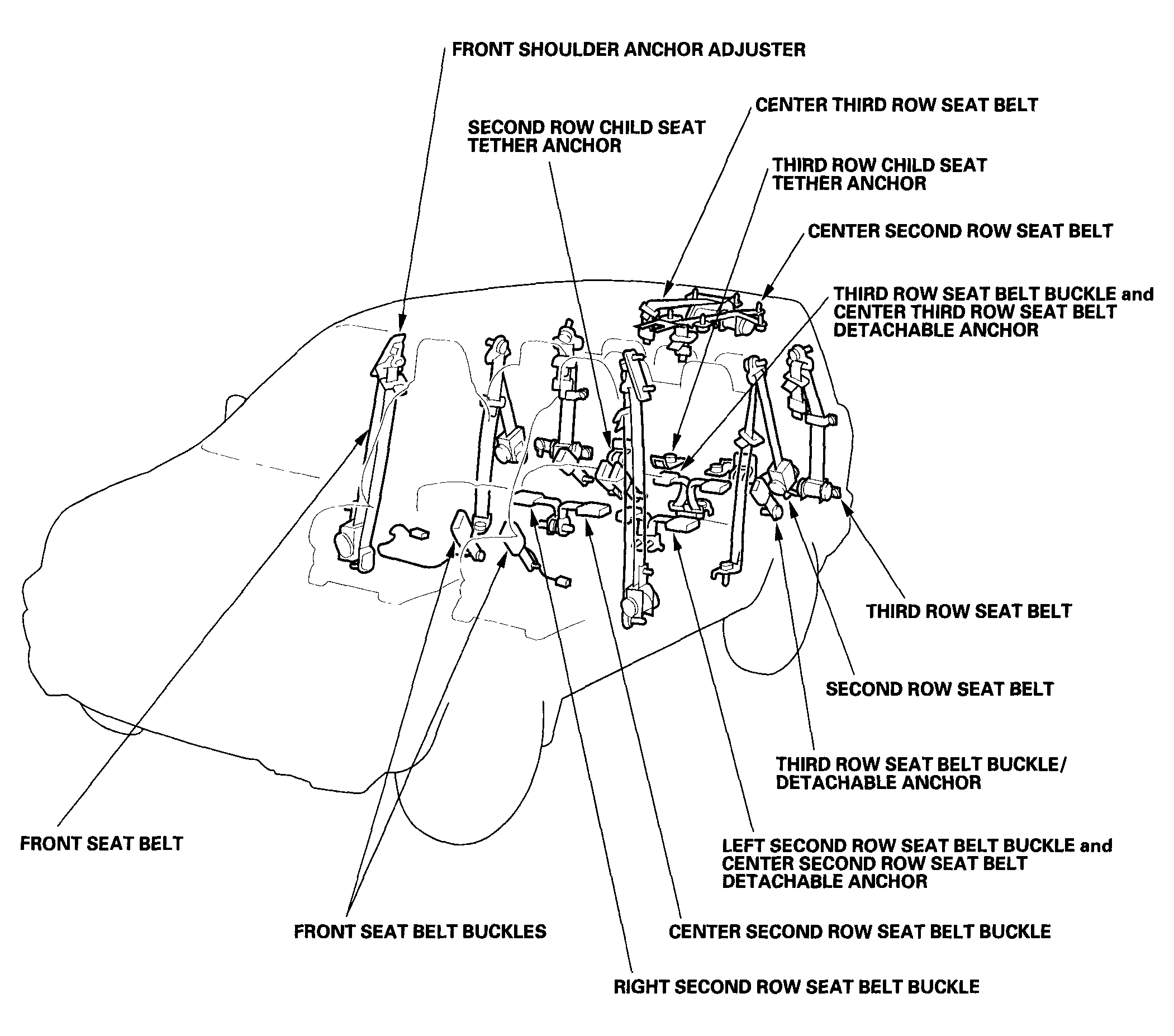

Fig 1: Identifying Location Of Seat Belt Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
