Component Location Index

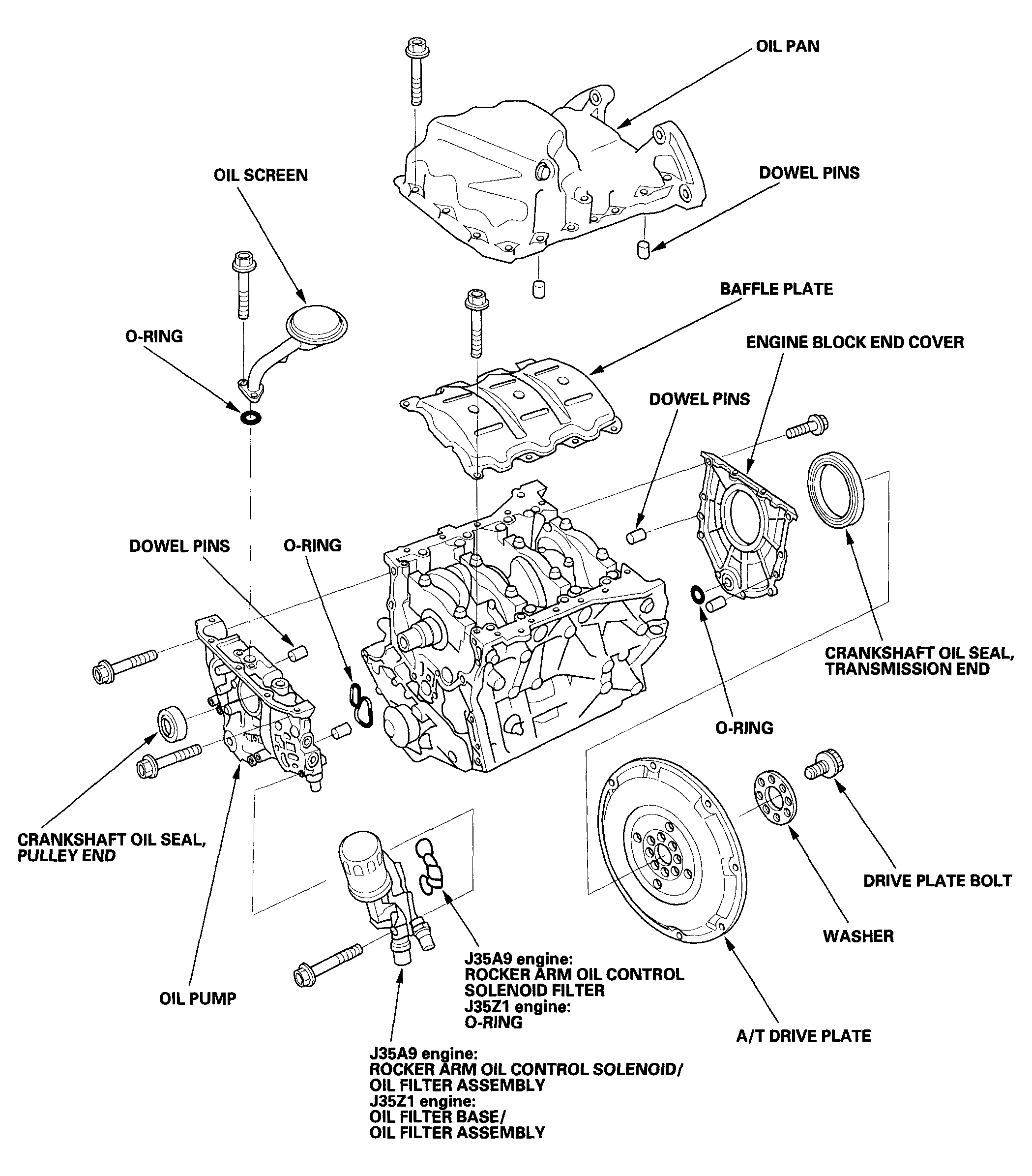

Fig 1: Identifying Location Of Engine Block Components (1 Of 3)
G04244902Courtesy of AMERICAN HONDA MOTOR CO., INC.

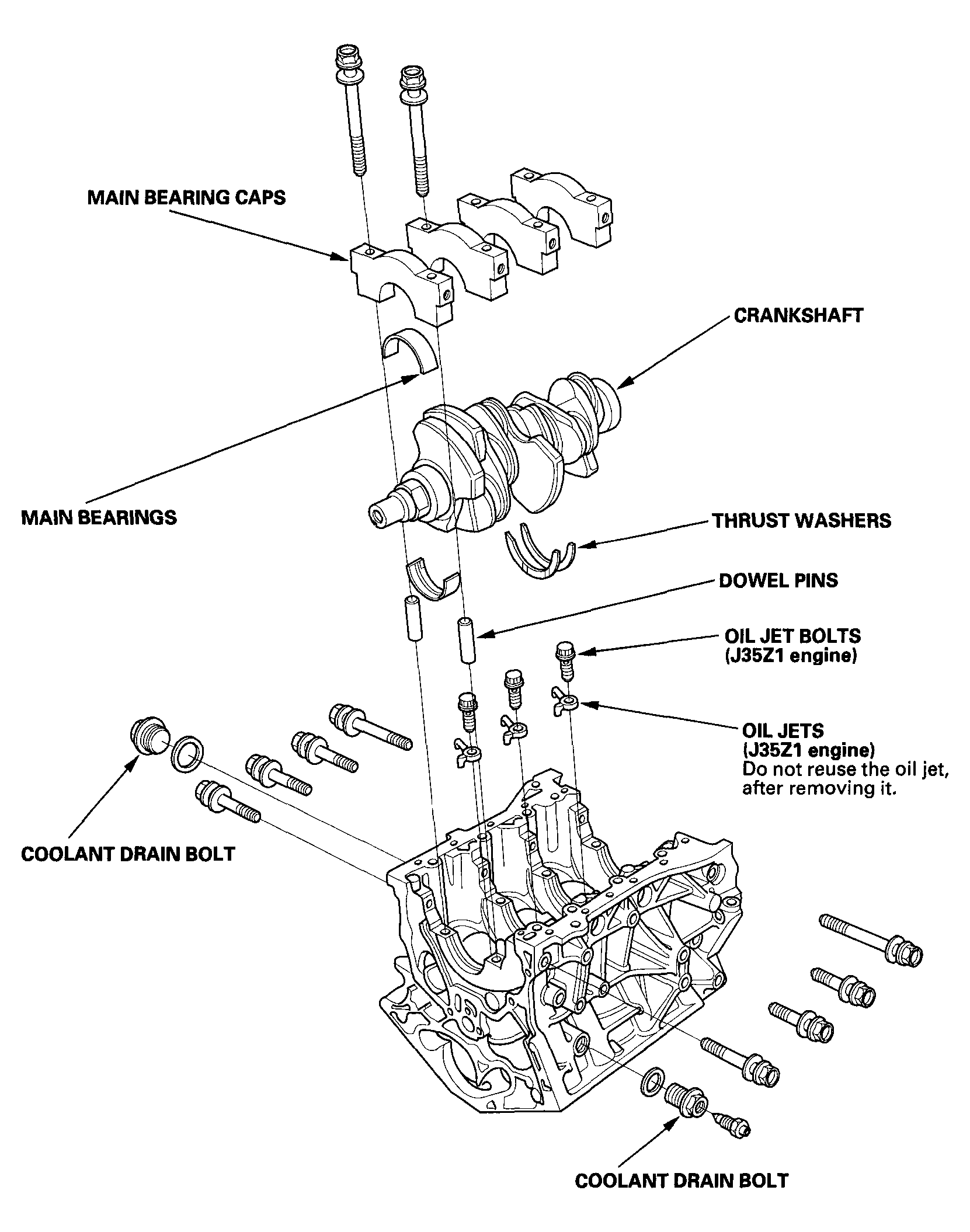

Fig 2: Identifying Location Of Engine Block Components (2 Of 3)
G04244903Courtesy of AMERICAN HONDA MOTOR CO., INC.

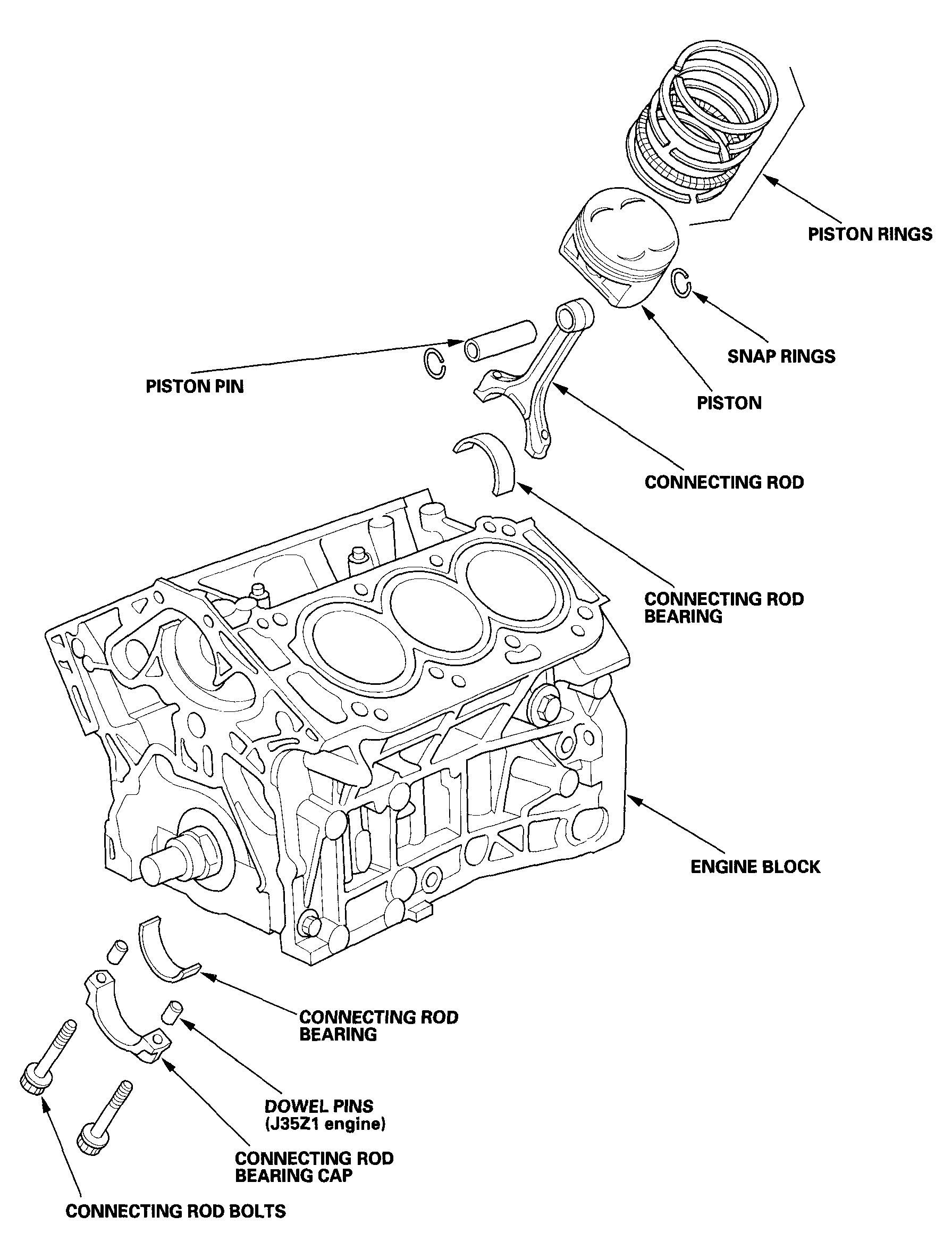

Fig 3: Identifying Location Of Engine Block Components (3 Of 3)
G04244904Courtesy of AMERICAN HONDA MOTOR CO., INC.
