Engine Mount Replacement

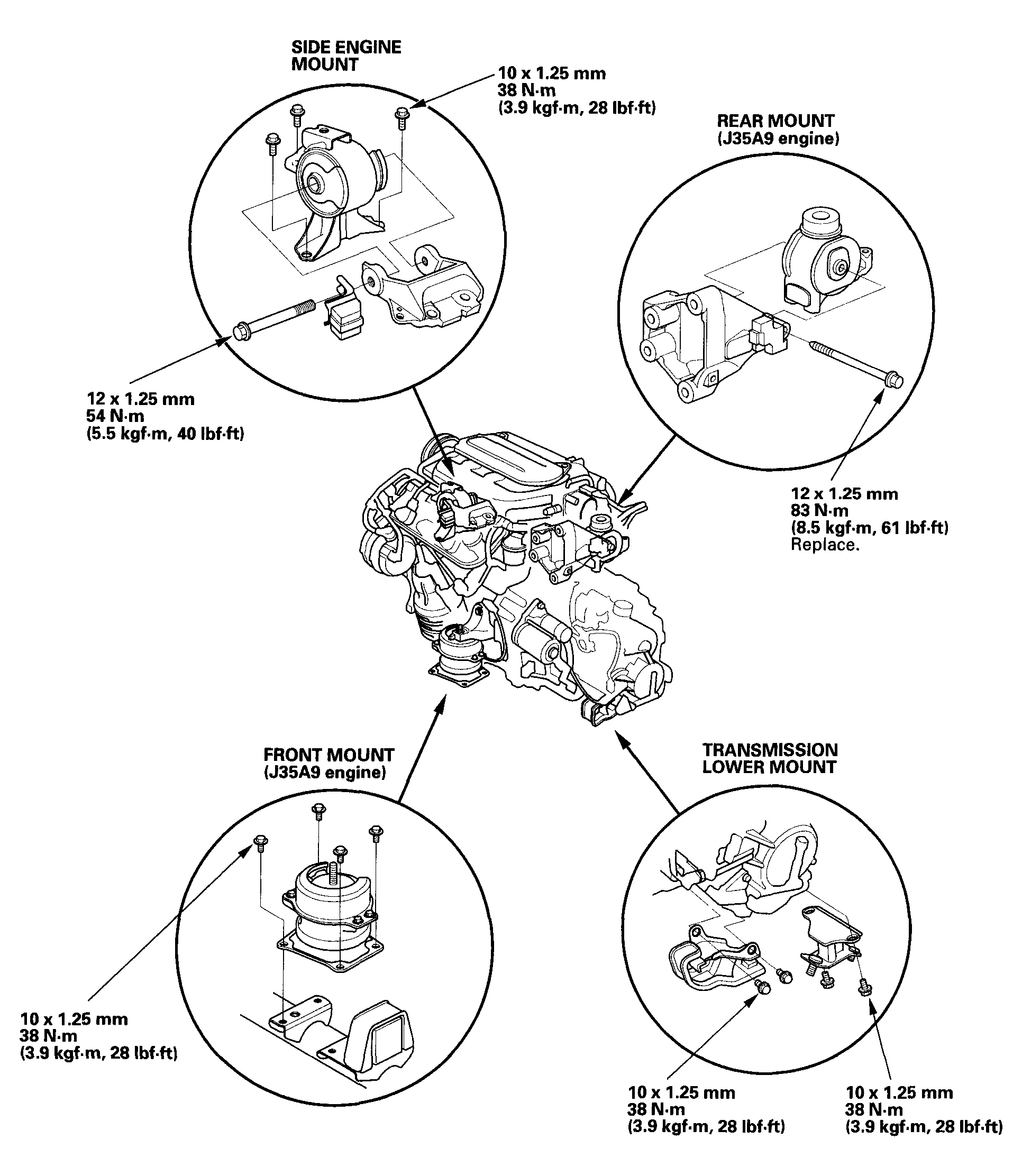

Fig 1: Engine Mount Replacement With Torque Specifications

G04244579

Courtesy of AMERICAN HONDA MOTOR CO., INC.
