Pilot SE, 3.5 YF2
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System
>>
Engine Lubrication System
>>
Component Location Index
Component Location Index

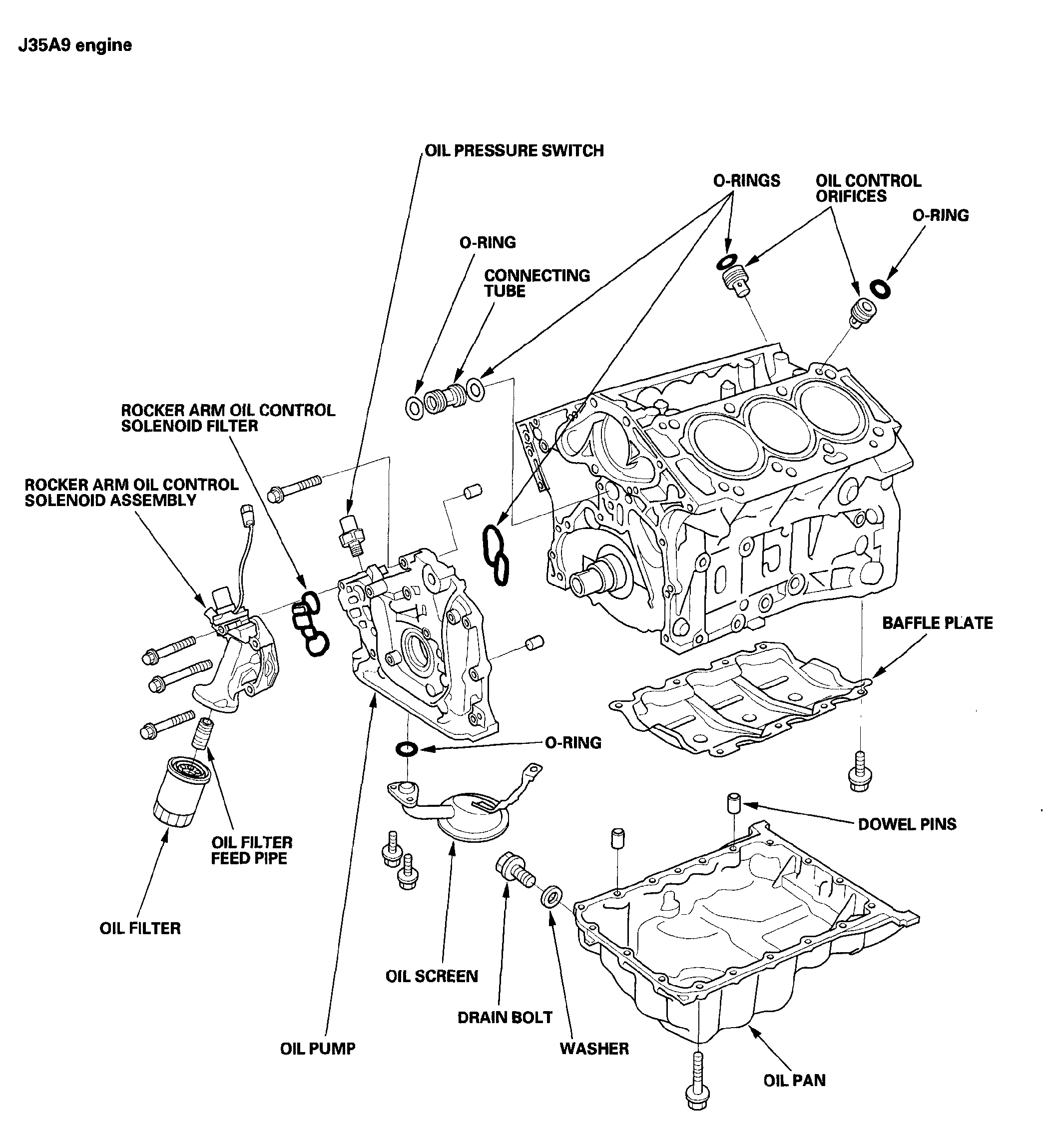

Fig 1: Identifying Location Of Engine Lubrication Components (J35A9 Engine)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Identifying Location Of Engine Lubrication Components (J35Z1 Engine - 1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

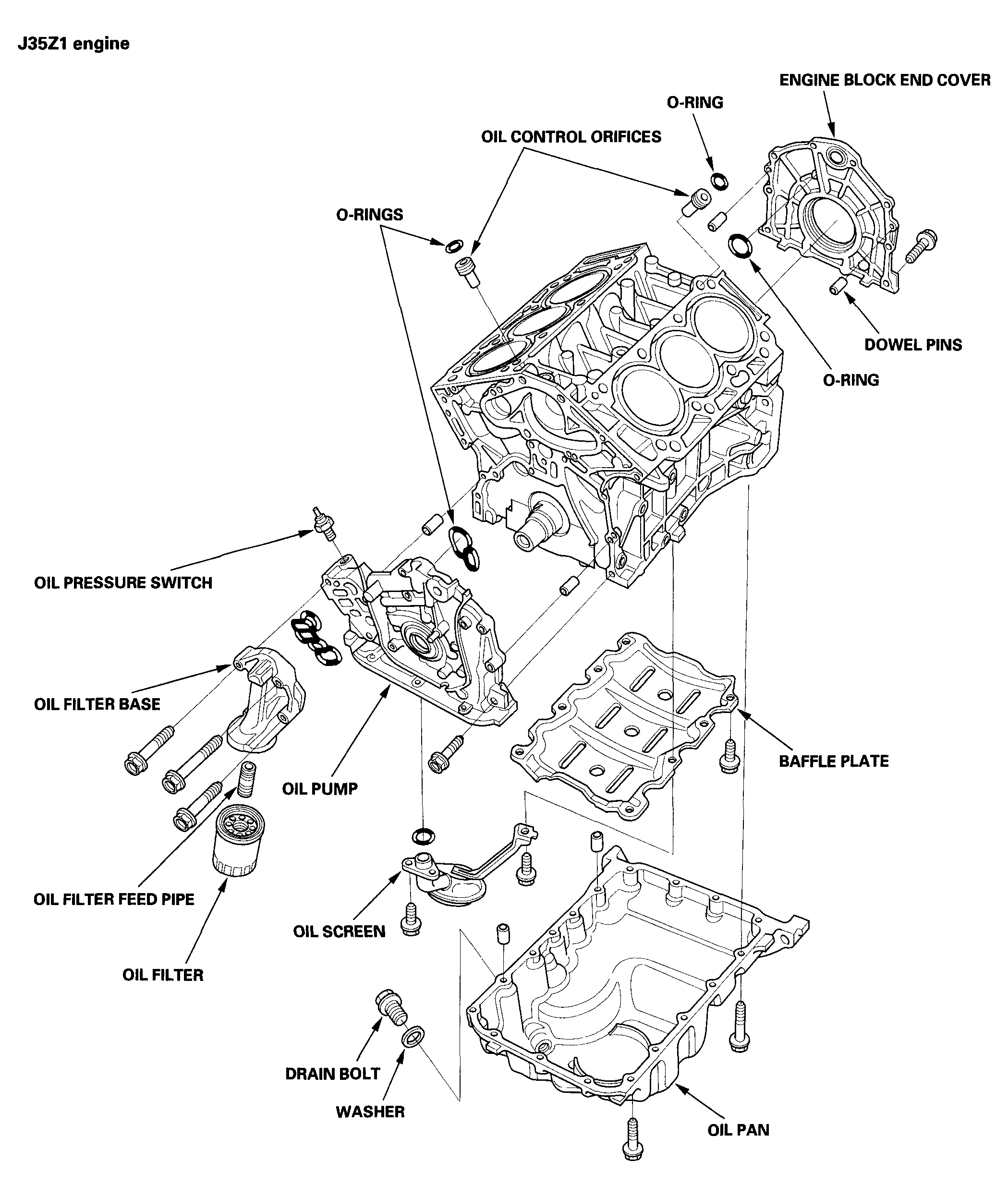

Fig 3: Identifying Location Of Engine Lubrication Components (J35Z1 Engine - 2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
