Component Location Index

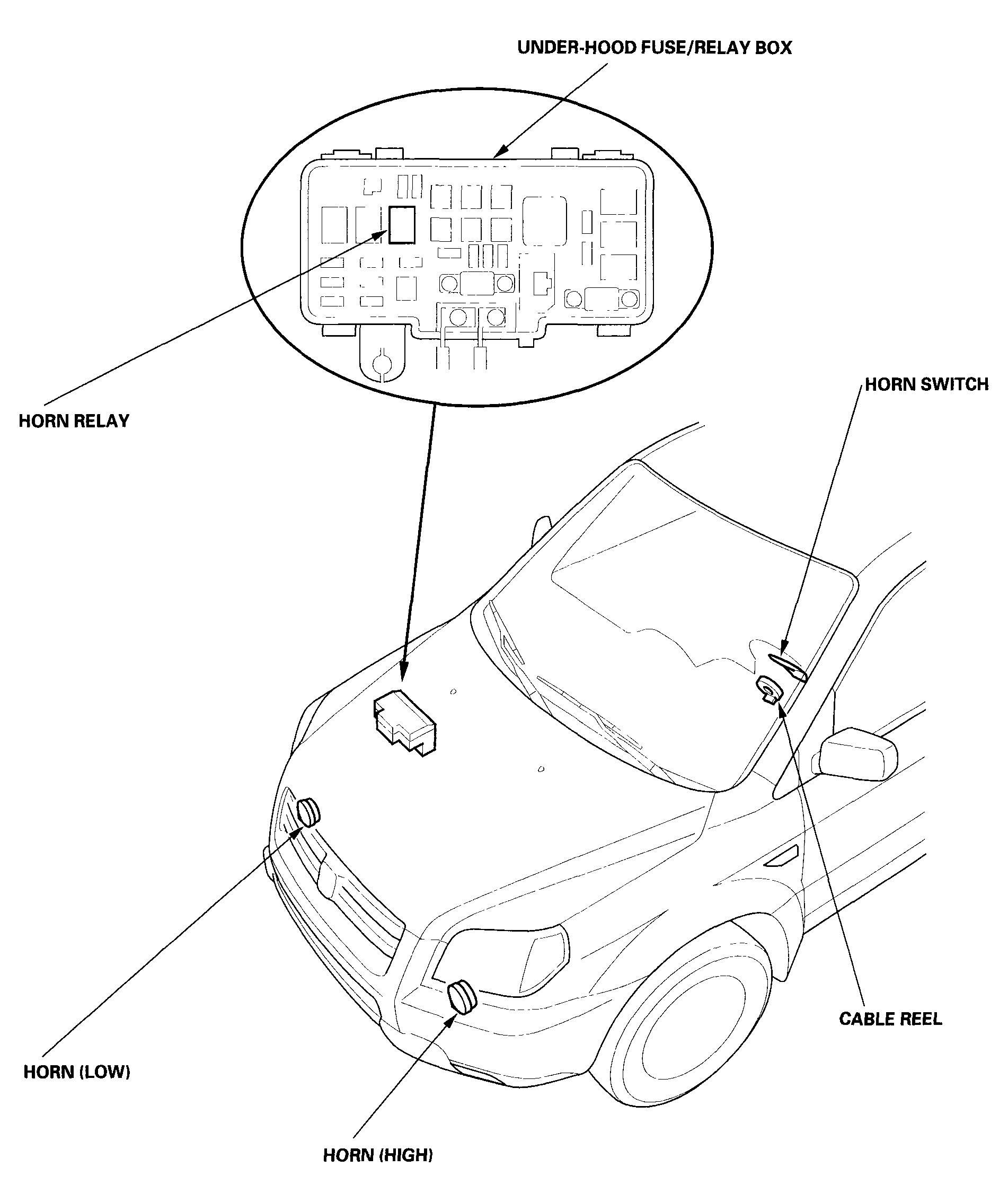

Fig 1: Identifying Horns Component Location

G04247214

Courtesy of AMERICAN HONDA MOTOR CO., INC.
