Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C Diode Assembly | Right side of dash. See Figure. |
| Auxiliary Fuse Box | Left side of engine compartment. See Figure. |
| Auxiliary Under-Hood Relay Box | Right front of engine compartment. See Figure. |
| Back-Up Sensor In-Line Fuse | Right rear of cargo area. See Figure. |
| Driver's Under-Dash Fuse/Relay Box | Below left end of dash. See Figure. |
| In-Line Diode No. 1 | In driver's underdash fuse/relay box. See Figure. |
| In-Line Diode No. 2 | In driver's underdash fuse/relay box. See Figure. |
| In-Line Diode No. 3 | In passenger's underdash fuse/relay box. See Figure. |
| In-Line Diode No. 4 | In passenger's underdash fuse/relay box. See Figure. |

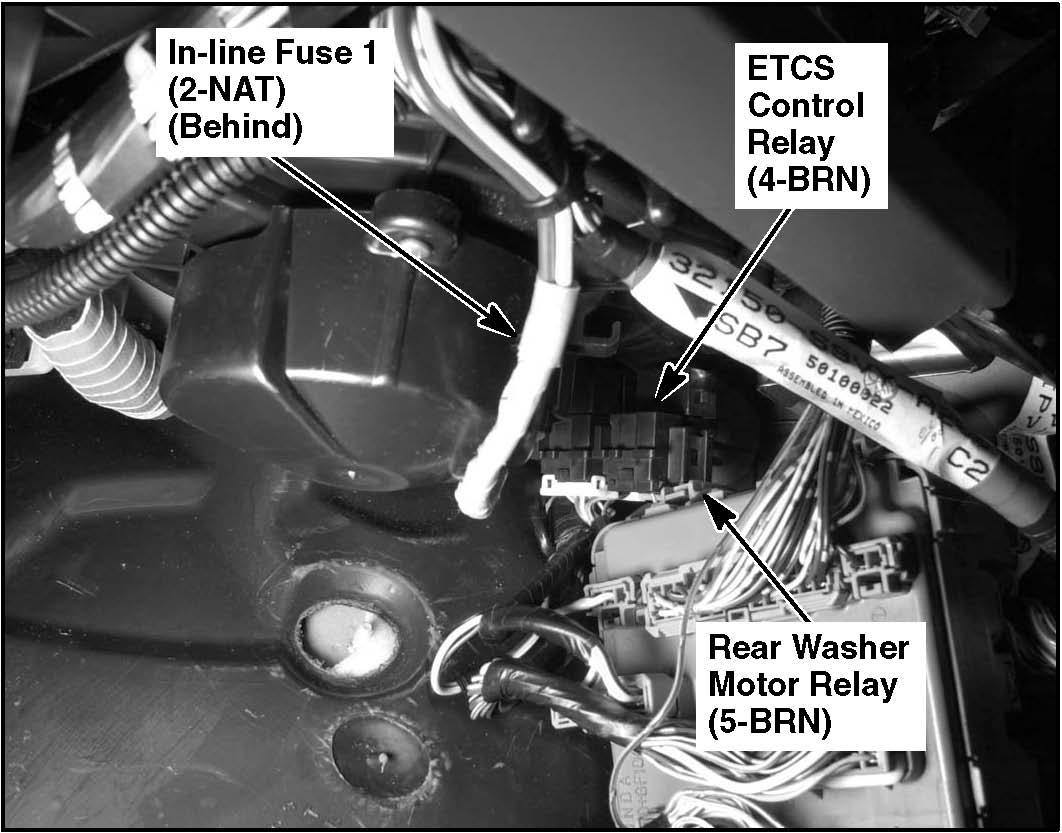

| In-Line Fuse 1 | Behind right kick panel. See Figure. |
| Passenger's Under-Dash Fuse/Relay Box | Behind right kick panel. See Figure. |
| Shift Lock Diode (A & B) | Under left side of dash. See Figure. |
| Underhood Fuse/Relay Box | Right side of engine compartment. See Figure. |
