HOMELINK Remote Control System: Test

NOTE: If the HomeLink remote control system will not open the customer's garage, do this:

Press any of the buttons on the HomeLink unit.
- If the red indicator comes on, go to step 3.
- If the red indicator does not come on, go to step 2.
Measure the voltage between the No. 6(1)(+) and No. 5(3)(-) terminals of the roof console 10P (front individual map light 3P) connecter. There should be battery voltage.
- If the voltage is not as pecified, check for these problems:
  - A blown No. 11 (10 A) fuse in the passenger's under-dash fuse/relay box.
  - A faulty passenger's under-dash fuse/relay box.
  - An open in the WHT/BLU wire between the passenger's under-dash fuse/relay box and the roof console (map light).
  - An open in the BLK wire between the roof console (map light) and G901 (G501).
- If the voltage is as specified, go to step 3.

( ): without moonroof

Make sure the commercially available Genie remote transmitter (test remote) has fresh batteries.
NOTE: The Genie remote transmitter can be either the fixed code type or rolling code type.
Clear any previously learned codes by pressing and holding the two outside buttons (A) on the HomeLink nite (B) for about 20 seconds. When the red indicator (C) on the unit starts blinking, release the buttons.

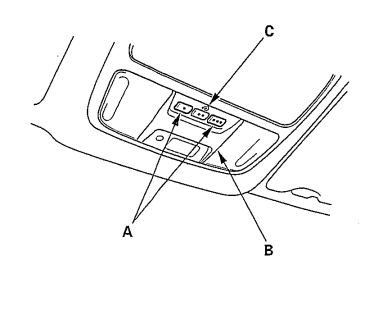

Fig 1: Clearing Any Previously Learned Codes

Point the test remote transmitter (A) straight up exactly 101.6 mm (4.0 in.) away from the HomeLink unit (B).

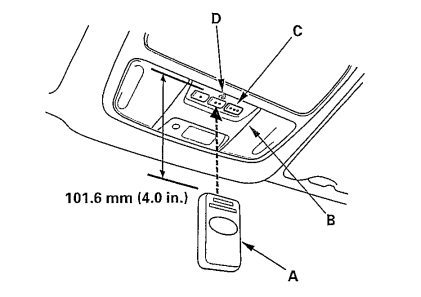

Fig 2: Pointing Test Remote Transmitter Straight Up Exactly 101.6 Mm (4.0 In.) Away From Homelink Unit

Press and hold the button on the test remote transmitter and one of the buttons (C) on the HomeLink unit at the same time.
Wait about 20 seconds while watching the red indicator (D) on the HomeLink unit.
- If the red indicator starts blinking slowly and then blink faster, the unit is OK. Release the buttons, then clear the learned code (see step 4). Explain to the customer that garge door remote transmitter come in two types: fixed code and rolling code. Each type has it's own programming method, and each method is covered has concerns about the HomeLink unit assistance.
- If the red indicator does not blink, replace the roof console (map light). With moonroof (see AMBIENT LIGHT TEST ). Without moonroof (see FRONT INDIVIDUAL MAP LIGHT TEST ).
( ): without moonroof
