Pilot EX, 3.5 YF2
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Circuit Diagram
Circuit Diagram

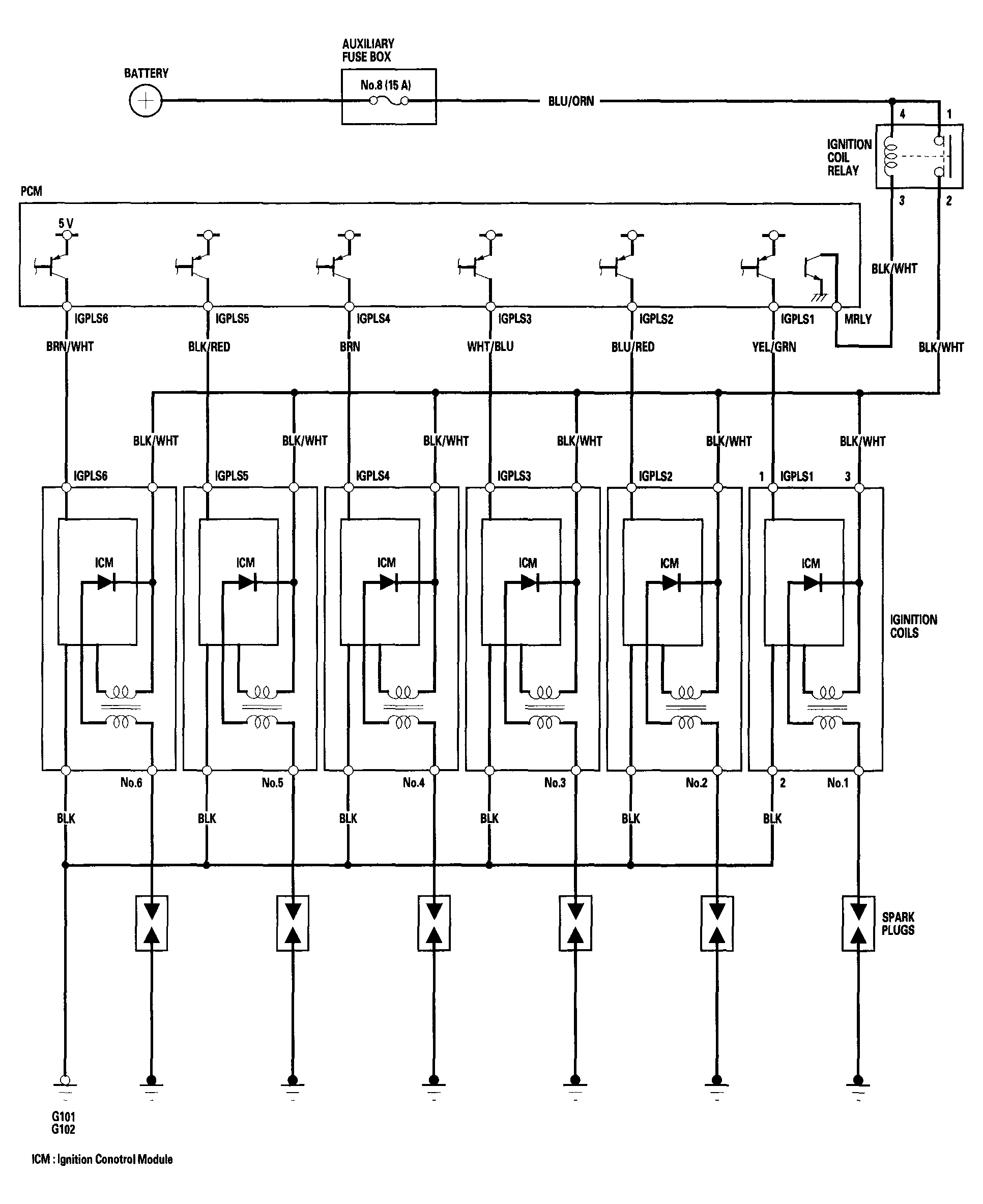

Fig 1: Ignition System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
