Odyssey Touring
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Navigation System
>>
Circuit Diagram
>>
'07 model
>>
Notes
'07 model: Notes

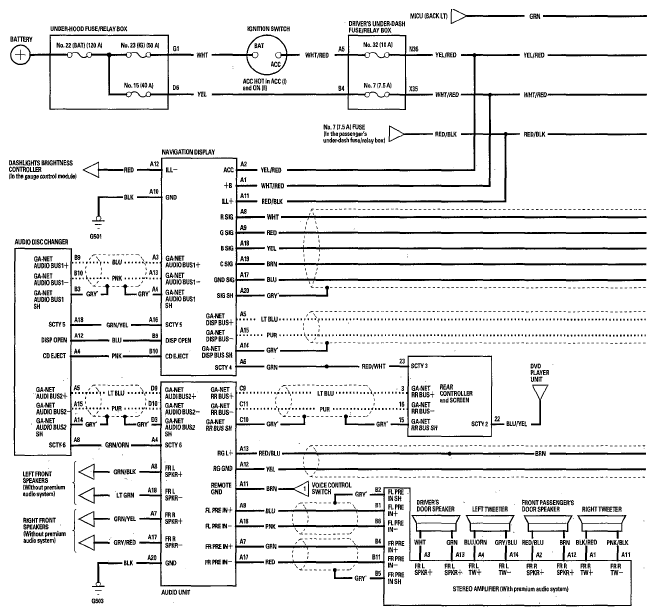

Fig 1: Navigation System Circuit Diagram For '07 Model (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

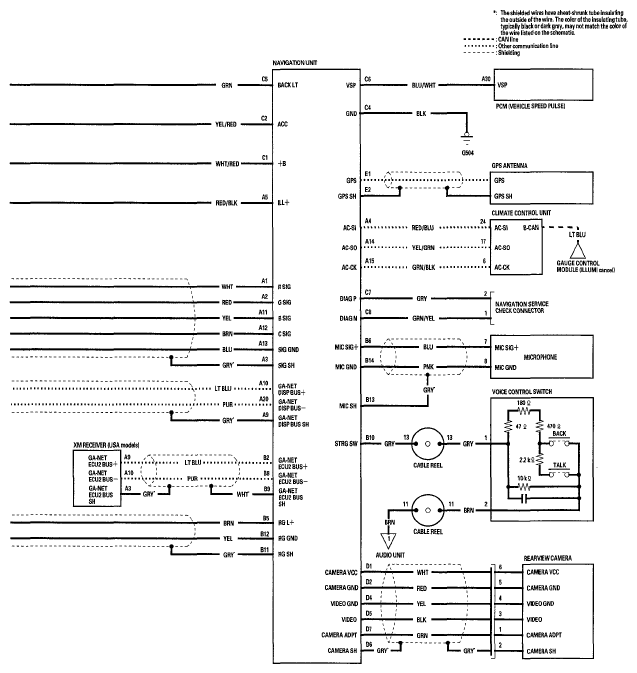

Fig 2: Navigation System Circuit Diagram For '07 Model (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
