Third Row Seat Disassembly/Reassembly

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Put on gloves to protect your hands.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
Take care not to scratch the body or tear the seat covers.

Remove the third row seat (see THIRD ROW SEAT REMOVAL/INSTALLATION ).
Release the hook (A) from under the seat cushion, and pull back the seat cushion cover (B) as needed. Remove the screw and Release the hooks (C), then remove the pivot bolt cover (D) from both sides of the seat.

Fig 1: Identifying Hook And Pivot Bolt Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

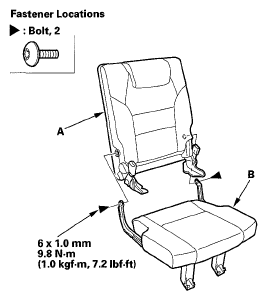

Using a TORX T30 bit, remove the pivot bolt securing the seat-back (A) and sat cushion (B), then separate them.

Fig 2: Pivot Bolt And Cushion With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, remove the front link cover (A) by releasing the hooks (B).

Fig 3: Identifying Front Link Cover And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the seat-back in the reverse order of removal, and note these items:
- To prevent wrinkles in the seat cushion cover, make sure the material is stretched evenly over the pad before securing the hook strip.
- Push the hooks into place securely.
