Front Seat-back Cover Replacement
WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program; call 888-424-6857
SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.
- Check the operation of the driver's seat position sensor after any of these actions (see
DRIVER'S SEAT POSITION SENSOR OPERATION CHECK
).
- Driver's seat position sensor replacement
- Cover plate (front side of driver's seat slide rail) replacement
- Calibrate the ODS unit after any of the these actions (see
ODS UNIT CALIBRATION
).
- Front passenger's seat replacement (including any seat components)
- Replacement of the seat weight sensors
- After a vehicle collision
NOTE:
- Put on gloves to protect your hands.
- Take care not to tear the seams of damage the seat covers.
- On the passenger's seat, do not touch the OPDS sensor in the seat-back pad, and keep it away from oil. Oil can corrode the sensor causing it to fail.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ).
- Remove the seat-back (see FRONT SEAT DISASSEMBLY/REASSEMBLY ).
- Detach the clips, release the hooks (A) by pulling the, bottom of the back panel (B) back, then gently pull down the panel to release the hooks (C) from the seat-back frame, and remove the panel.NOTE: Detach the clips and hooks in the numbered sequence as shown.
- Release the hooks (A), then loosen the seat-back cover (B). Remove the wire ties (C).
- Pull the recline motor harness/lumbar support motor harness (A) (driver's seat) or recline motor harness (B) (passenger's seat), seat-back heater harness (C), side airbag harness (D) and the ODS unit harness (E) (passenger's seat) out through the holes (F) in the seat-back cover.
Driver's seat-back
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Passenger's seat-back

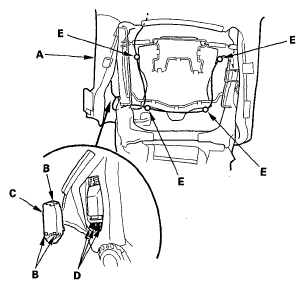

- Passenger's seat: Turn over the seat-back cover (A), detach the hooks (B), then remove the ODS unit cover (C). Disconnect the OPDS sensor connectors (D), then detach the harness clips (E).

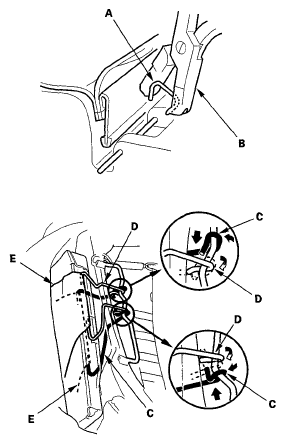

- Release the front hook (A) and rear hook (B) of the reinforcing cloth (C) from seat-back frame (D).
- Pull out the head restraint guides (A) while pinching the tabs on the end of the guides, and remove them.

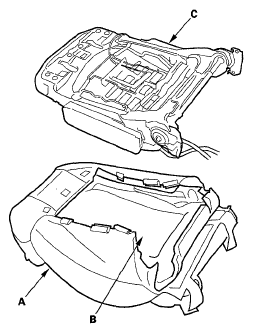

- Remove the seat-back cover (A) and seat-back pad (B) from the seat-back frame (C).

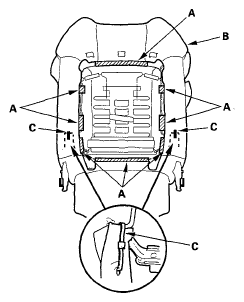

- Pull back the edge of the seat-back cover all the way around, and release the clips (A), then remove the seat-back cover.
- Install the cover in the reverse order of removal, and note these items:
- Reinitialize the ODS unit (see ODS UNIT INITIALIZATION ).
- To prevent wrinkles when installing a seat-back cover, make sure the material is stretched evenly over the pad before securing the clips, hooks, and hook strips.
- Replace any clips you removed with new ones (A). Install them with commercially available upholstery ring pliers (B).
- Reinstall the front hook (C) and rear hook (D) of the reinforcing cloth (E) securely.
- Use only original Acura replacement seat-back covers.
- Make sure the recline motor harness/lumbar support motor harness (driver's seat) or recline motor harness (passenger's seat), side airbag harness, seat-back heater harness, and ODS unit harness (passenger's seat) are routed properly.
- Replace the back panel clips with new ones.
