Exploded View ('08-10 models)

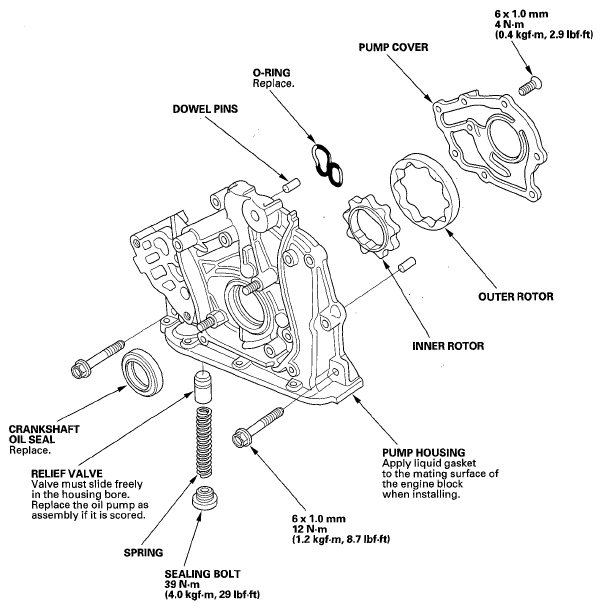

Fig 1: Exploded View Of Oil Pump - '08-10 models With Torque Specifications
G05523495Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Oil seal driver, 64 mm 070AD-RCAA100
