Low Oil Pressure Indicator Circuit Diagram

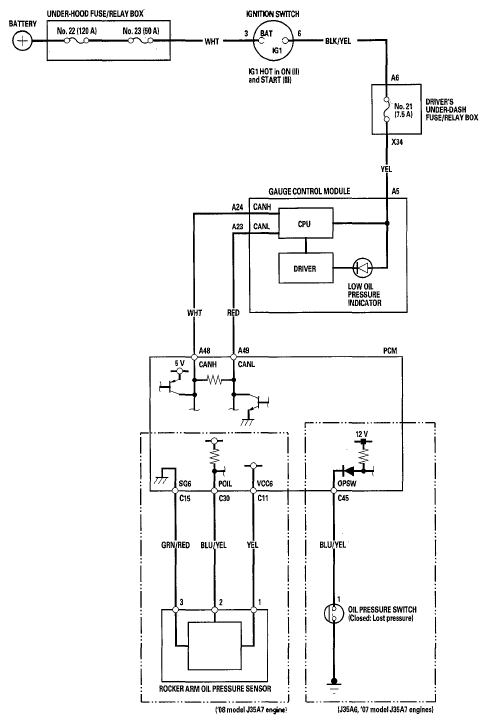

Fig 1: Low Oil Pressure Indicator Circuit Diagram

G05523477

Courtesy of AMERICAN HONDA MOTOR CO., INC.
