'08-10 models J35A7 engine

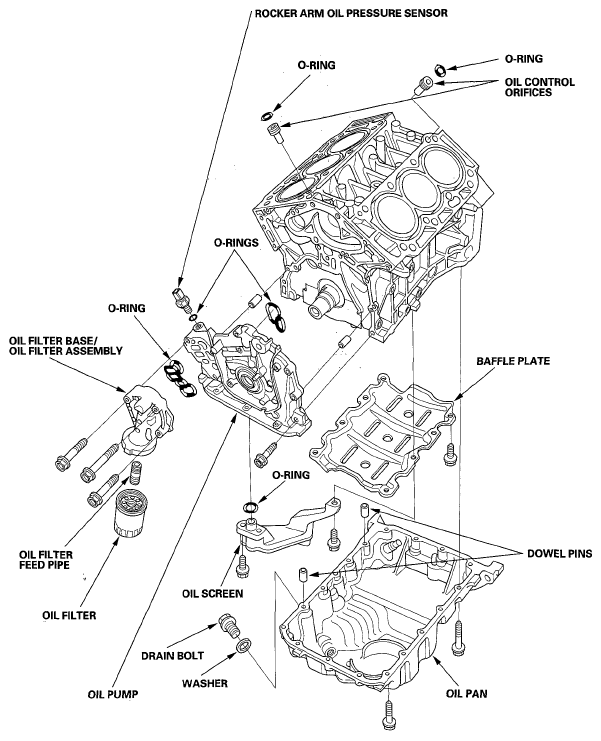

Fig 1: Identifying Engine Lubrication Component Location - '08-10 models J35A7 Engine

G05523473

Courtesy of AMERICAN HONDA MOTOR CO., INC.
