'07 model J35A7 engine

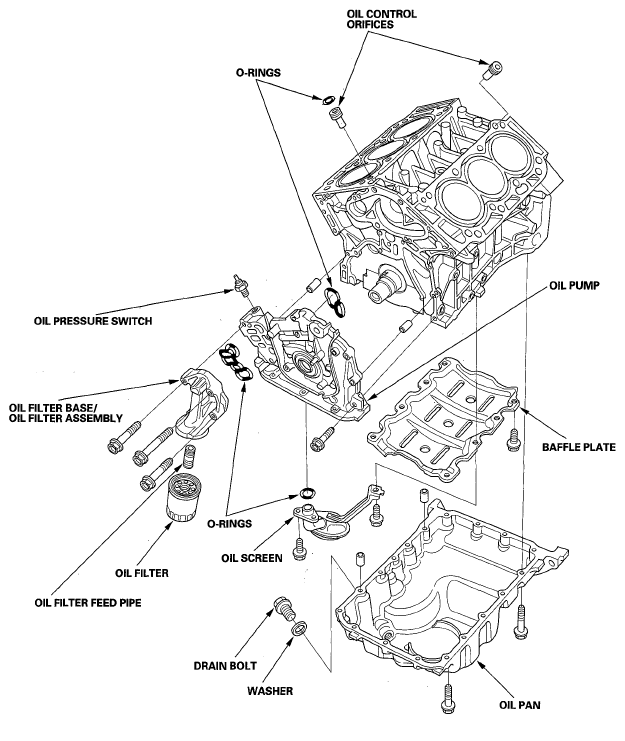

Fig 1: Identifying Engine Lubrication Component Location - '07 Model J35A7 Engine

G05523472

Courtesy of AMERICAN HONDA MOTOR CO., INC.
