Selector Control Shaft Bearing Replacement

Special Tools Required

• Weight, Remover 07741-0010201
• Attachment, 22 x 24 mm 07746-001A800
• Driver Handle, 15 x 135L 07749-0010000
• Bearing Remover, 10 mm 07936-GE0A000

1. Remove the control shaft bearing from the transmission housing using the 10 mm bearing remover and the remover weight.
   Fig 1: Removing Control Shaft Bearing From Transmission Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install a new bearing until it bottoms in the transmission housing using the driver handle and the 22 x 24 mm attachment.

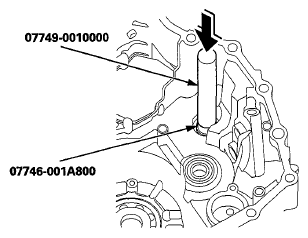

   Fig 2: Installing Bearing In Transmission Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
