Outside Air Temperature Sensor Test

NOTE: Before testing, check for HVAC DTCs (seeRetrieving DTCs (without HDS) )
  1. Remove the outside air temperature sensor (see OUTSIDE AIR TEMPERATURE SENSOR REPLACEMENT ).
  2. Dip the sensor in ice water, and measure the resistance. Then pour warm water on the sensor, and check for a change in resistance.
  3. Compare the resistance reading between the No. 1 and No. 2 terminals of the outside air temperature sensor with the specifications shown in the graph; the resistance should be within the specifications.

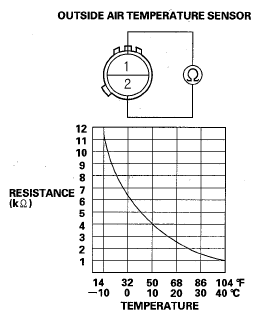

    Fig 1: Resistance And Temperature Graph
    G05526409Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the resistance is not as specified, replace the out side air temperature sensor (see OUTSIDE AIR TEMPERATURE SENSOR REPLACEMENT ).
