Dust and Pollen Filter Replacement

  1. Remove the glove box housing (see LOWER GLOVE BOX REMOVAL/INSTALLATION ).
  2. Remove the dust and pollen filter assembly (A) from the evaporator.

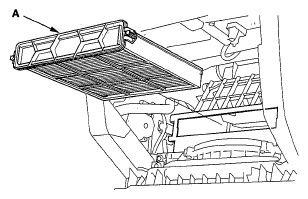

    Fig 1: Dust And Pollen Filter Location
    G05526418Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the filter (A) from the housing (B), and replace the filter.
    Fig 2: Identifying Filter And Housing
    G05526419Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the filter in the reverse order of removal. Make sure that there is no air leaking out of the evaporator.
