Circuit Diagram

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

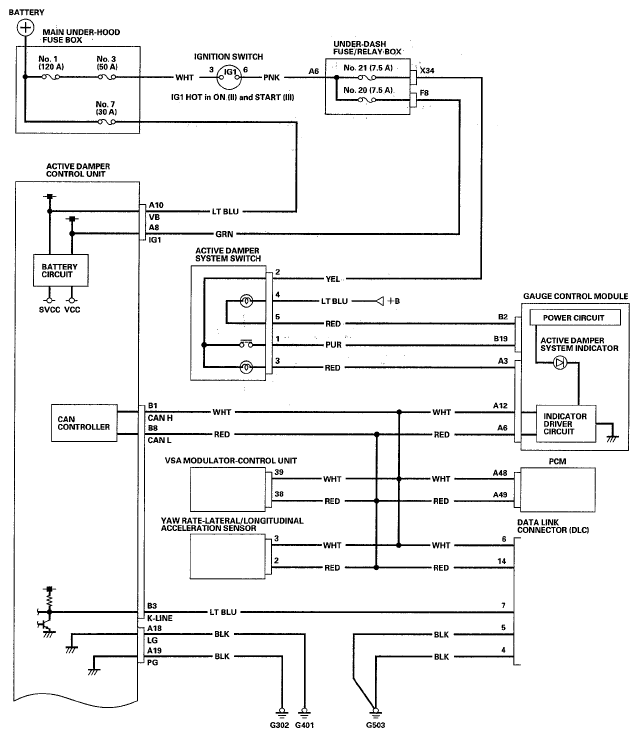

Fig 1: Active Damper System Circuit Diagram (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

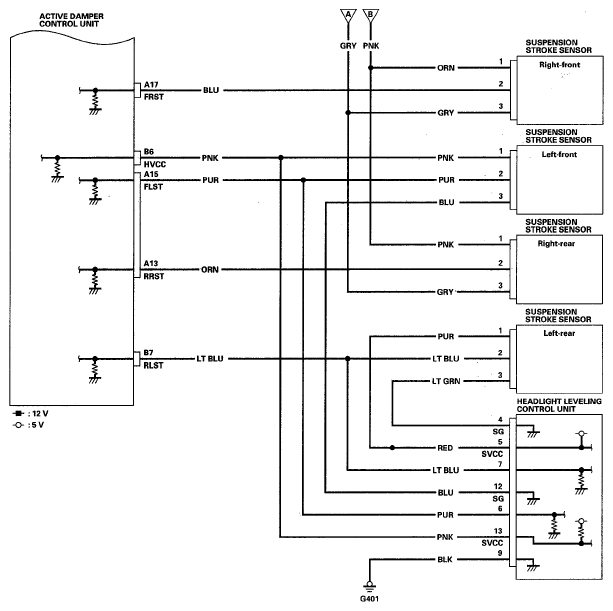

Fig 2: Active Damper System Circuit Diagram (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

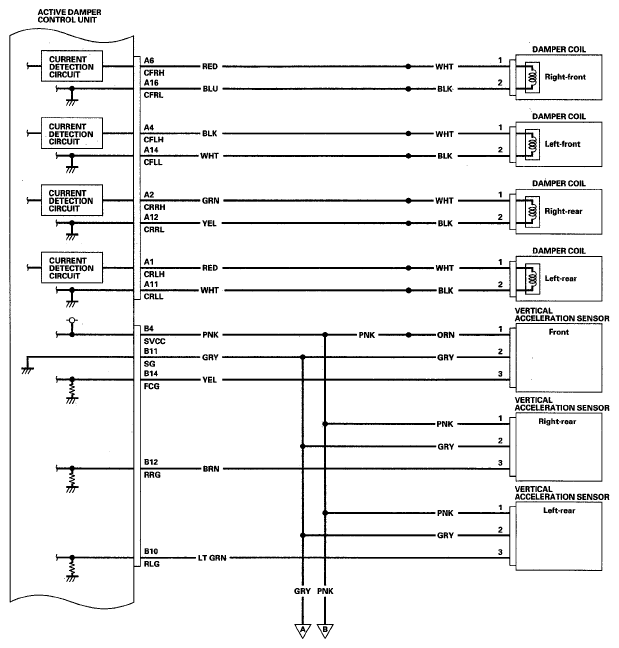

Fig 3: Active Damper System Circuit Diagram (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

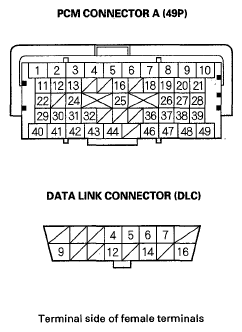

Fig 4: Active Damper Connector Terminals (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

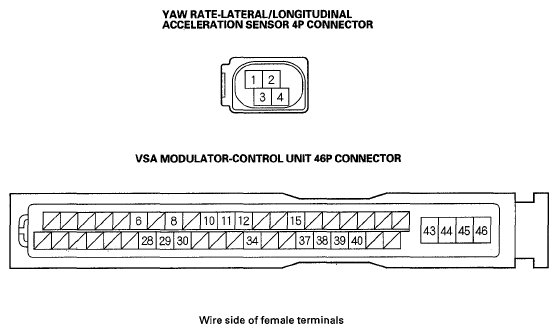

Fig 5: Active Damper Connector Terminals (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

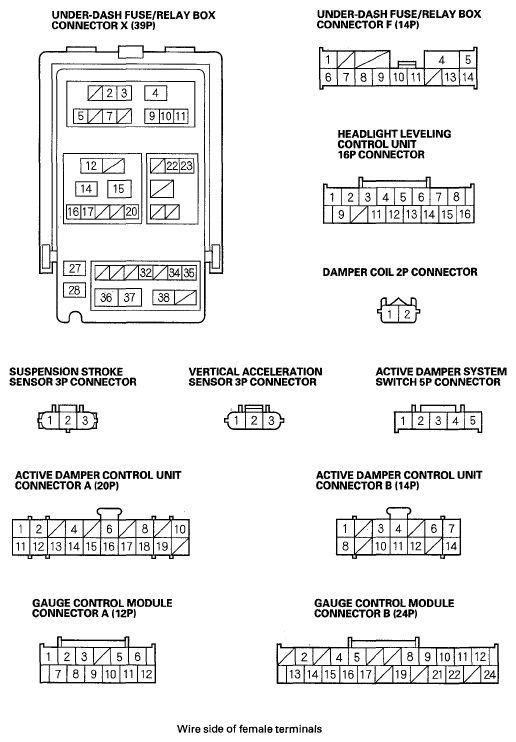

Fig 6: Active Damper Connector Terminals (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
