With Power Tailgate

NOTE: If the tailgate latch doesn't open by pulling the tailgate handle or using the keyless entry transmitter, remove the maintenance lid (A) from the tailgate lower trim panel, then turn the emergency lever (B) counterclockwise as shown.

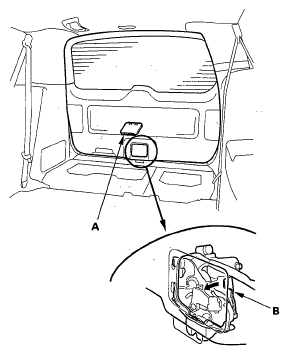

Fig 1: Identifying Emergency Lever
G05526108Courtesy of AMERICAN HONDA MOTOR CO., INC.
  1. Make sure you have the anti-theft codes for the audio system or the navigation system (if equipped), then write down the audio presets, and then disconnect the negative cable from the battery.
    NOTE: If you remove the tailgate latch while the negative battery cable is still connected, the vehicle goes into the failsafe mode.
  2. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  3. Disconnect the tailgate latch connector (A) and actuator connector (B).

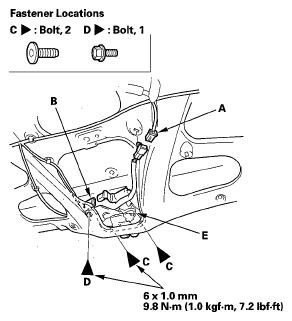

    Fig 2: Tailgate Latch Connector, Tailgate Latch And Actuator Connector With Torque Specification
    G05526109Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolts (C, D), and pull the tailgate latch (E) out, then remove it.
  5. Install the latch in the reverse order of removal, and note these items:
