Tweeter (With climate control)

Carefully pry the tweeter grille (A) out of the dashboard. Be careful not to damage the tweeter grille and the dashboard.

Fig 1: Identifying Tweeter Grille And 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 2P connector (B) from the tweeter.
Remove the tweeter from the speaker grille.

Fig 2: Identifying Tweeter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the resistance between the tweeter (A) terminals as shown.
- With premium audio system; Measure the resistance between tweeter 2P connector terminals No. 1 and No. 2. There should be about 4 O.
- Without premium audio system; Measure the resistance between tweeter 2P connector terminal No. 2 and the outside terminal of the capacitor (B). There should be about 4 O. Without premium audio system, check the capacitor condition. If any problem is found, replace the tweeter.

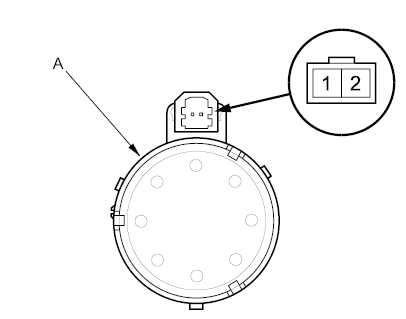

  Fig 3: Measuring Resistance Between Tweeter 2P Connector Terminals No. 1 And No. 2
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

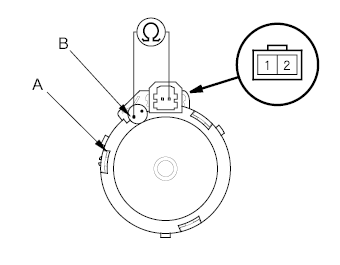

  Fig 4: Measuring Resistance Between Tweeter 2P Connector Terminals No. 2 And Outside Terminal Of Capacitor (B)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
