Circuit Diagram

'07 model with Premium Audio System

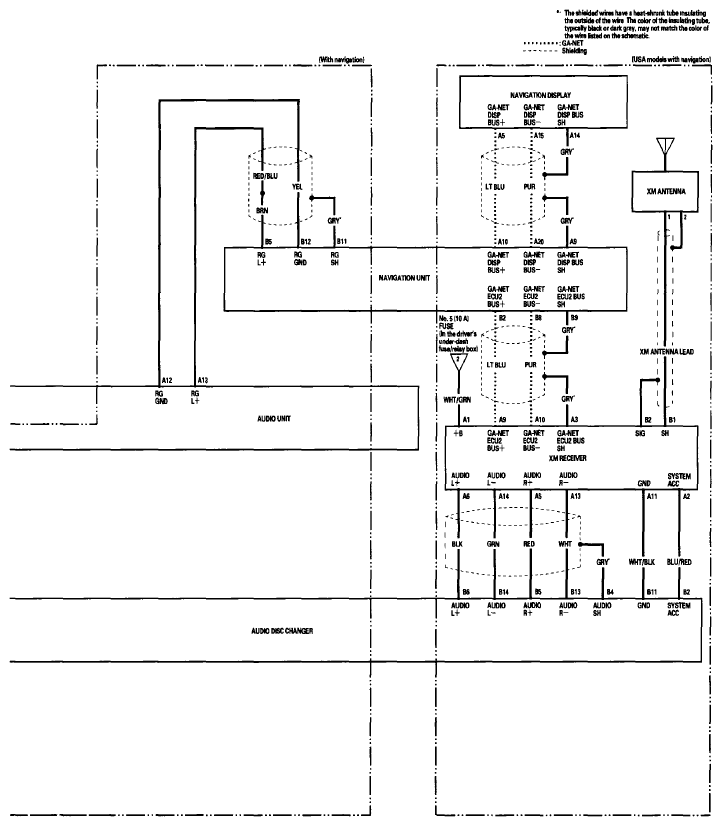

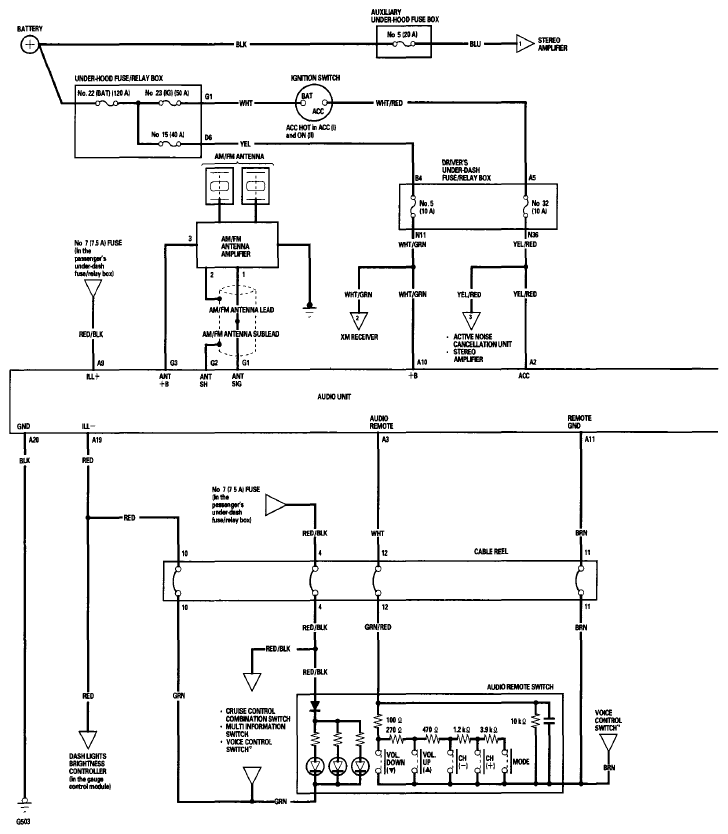

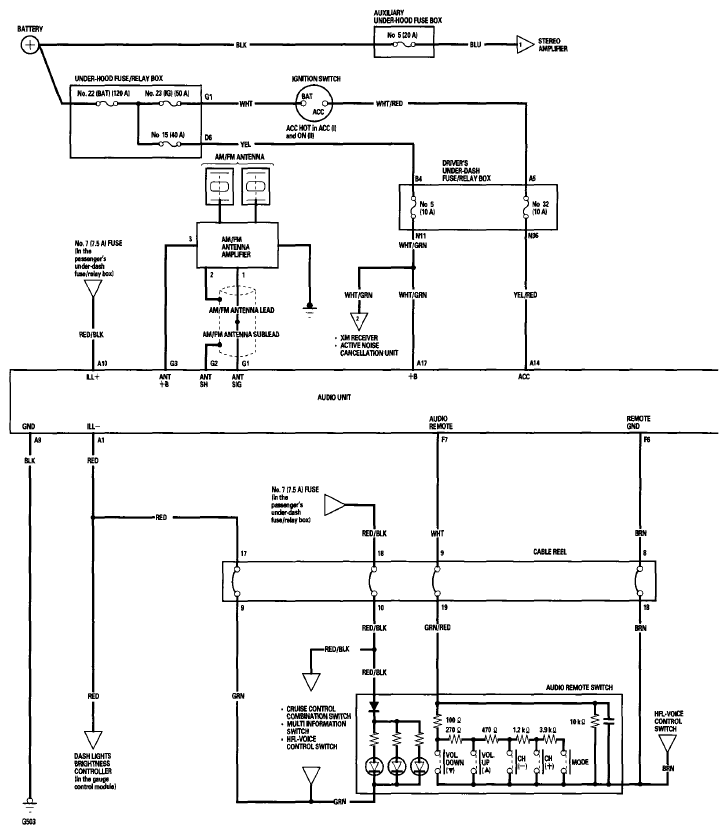

Fig 1: Audio System Circuit Diagram - 07 Model With Premium Audio System (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

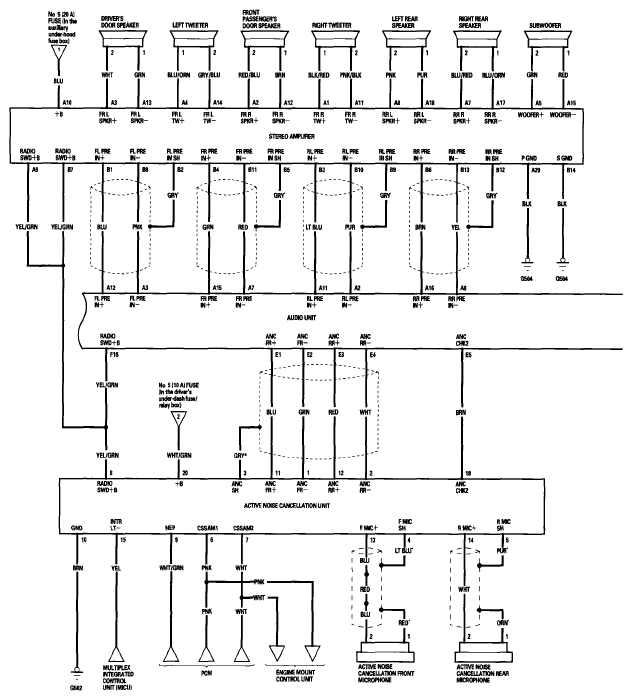

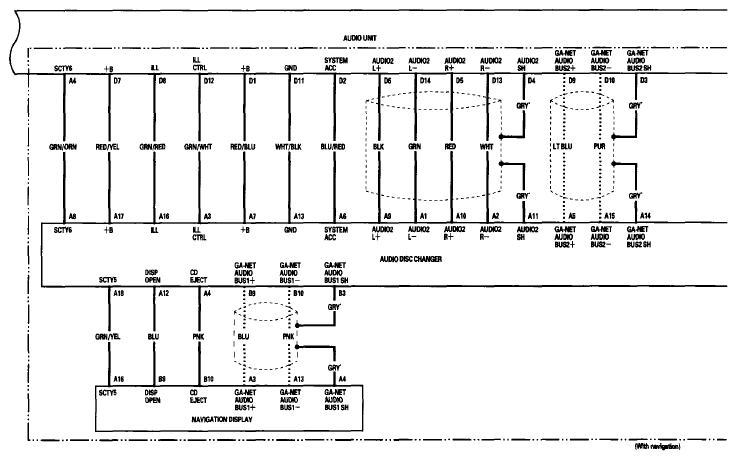

Fig 2: Audio System Circuit Diagram - 07 Model With Premium Audio System (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

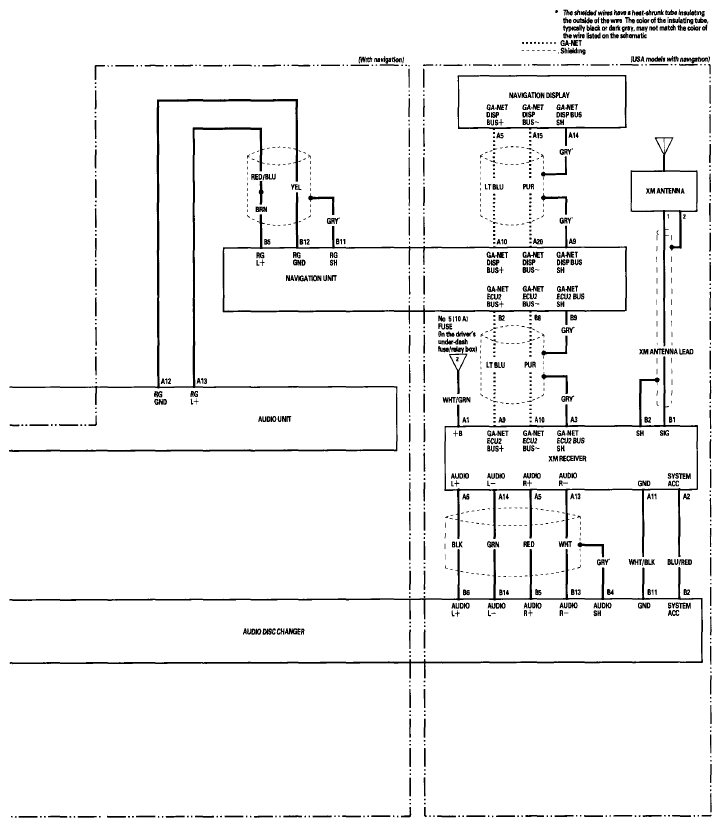

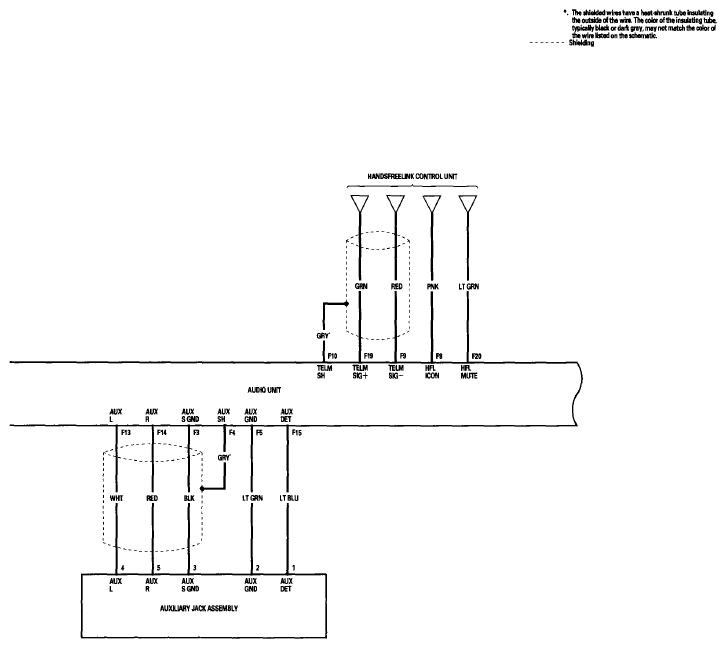

Fig 3: Audio System Circuit Diagram - 07 Model With Premium Audio System (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

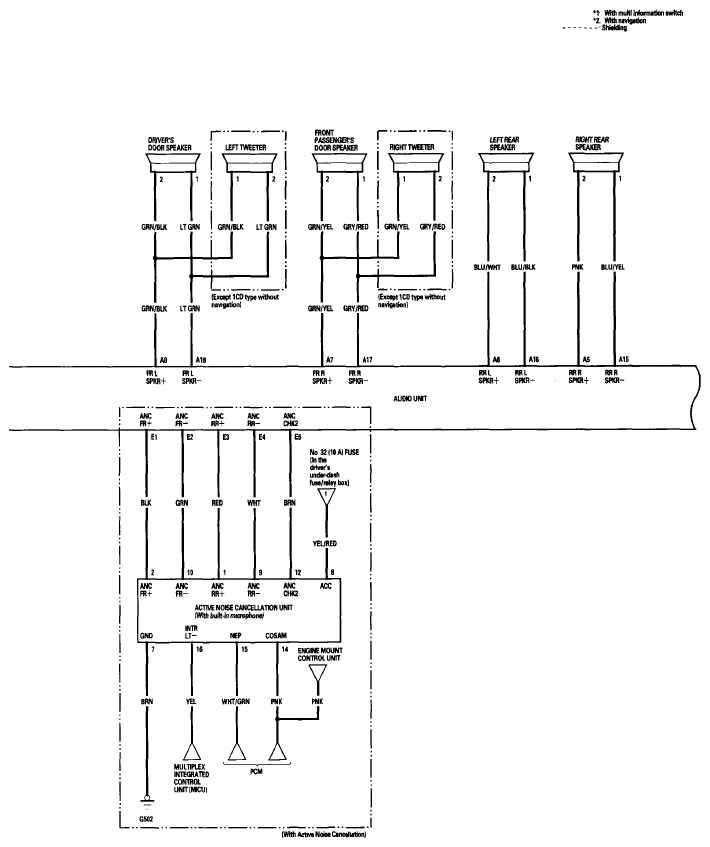

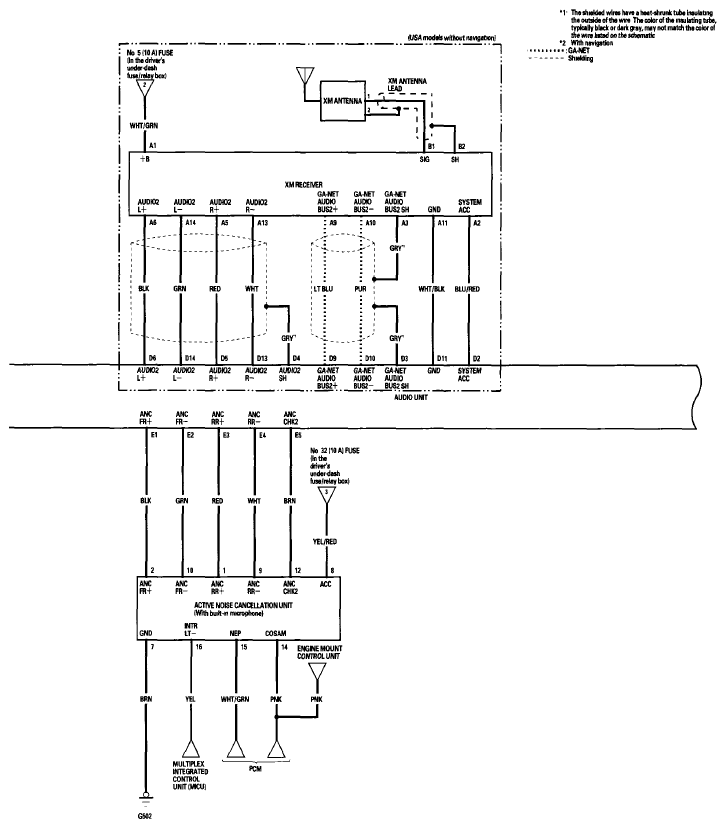

Fig 4: Audio System Circuit Diagram - 07 Model With Premium Audio System (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

'07 model without Premium Audio System

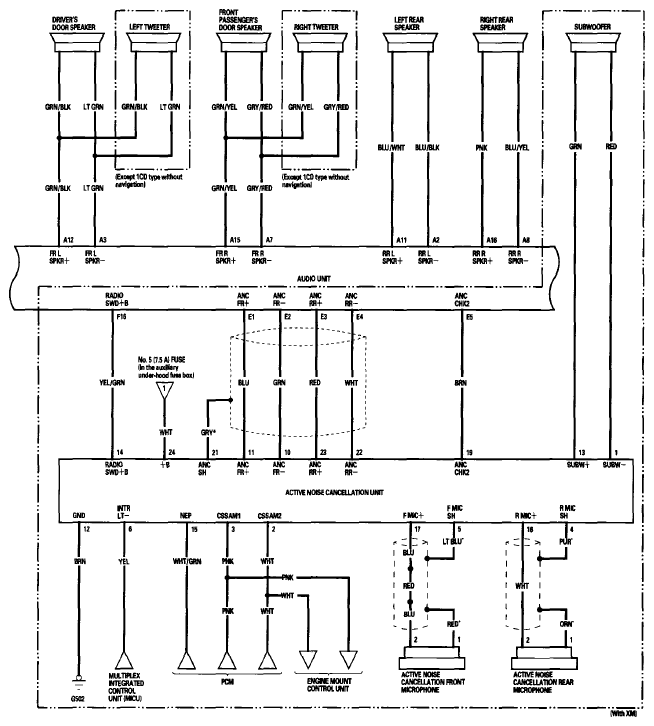

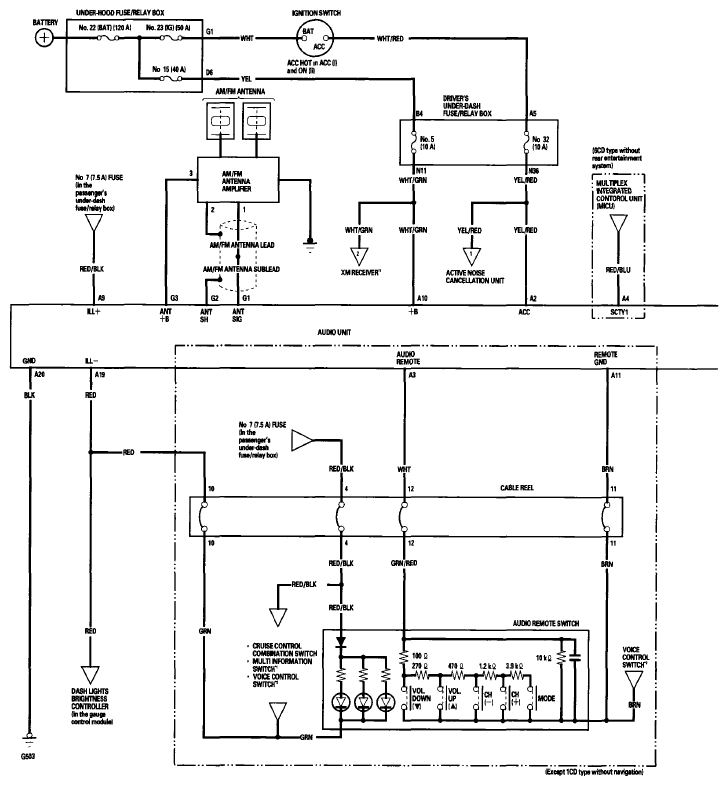

Fig 5: Audio System Circuit Diagram - 07 Model Without Premium Audio System (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

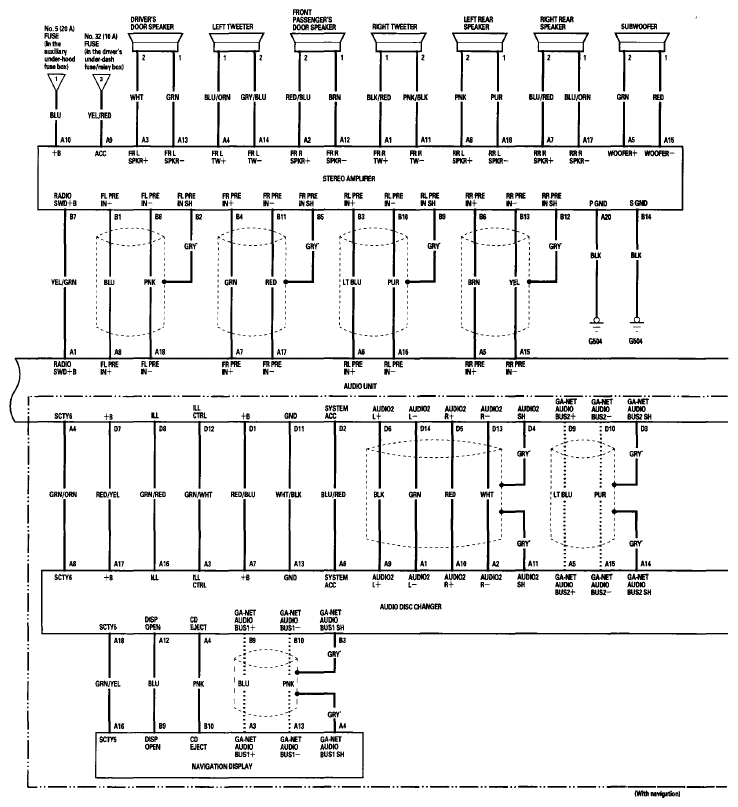

Fig 6: Audio System Circuit Diagram - 07 Model Without Premium Audio System (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

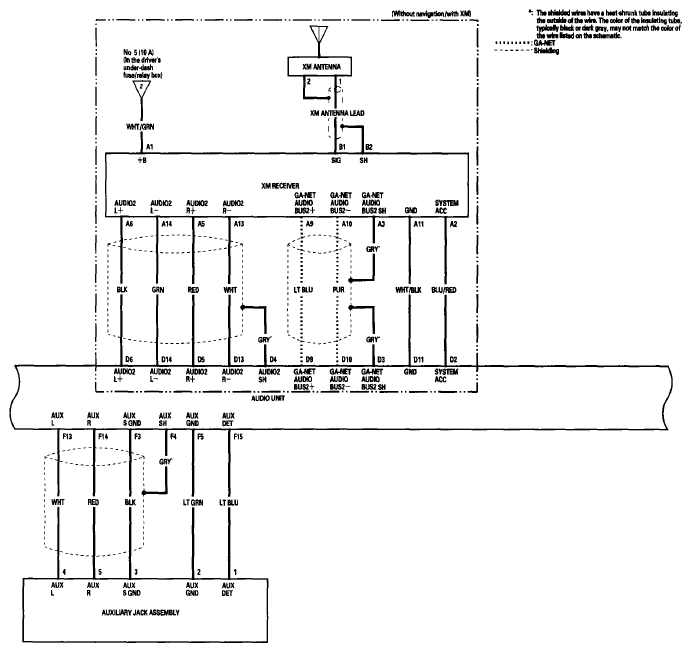

Fig 7: Audio System Circuit Diagram - 07 Model Without Premium Audio System (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

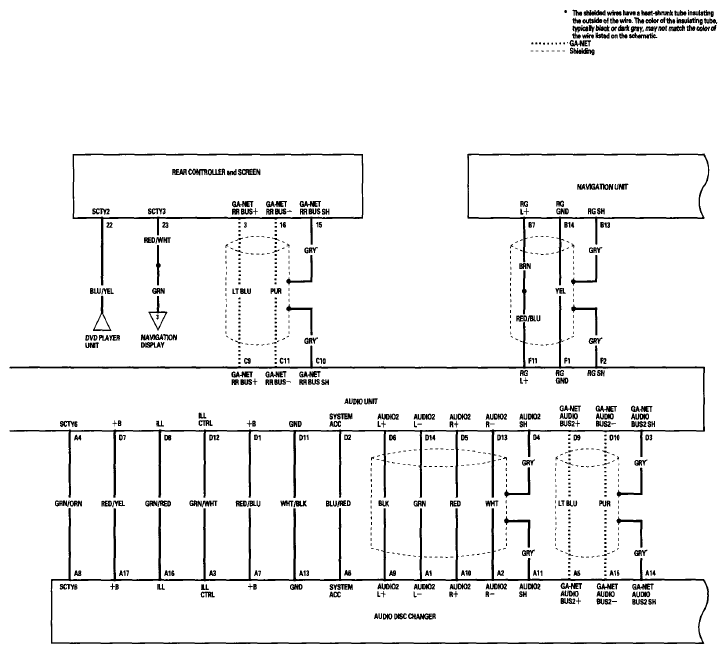

Fig 8: Audio System Circuit Diagram - 07 Model Without Premium Audio System (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

'08-10 models with Premium Audio System

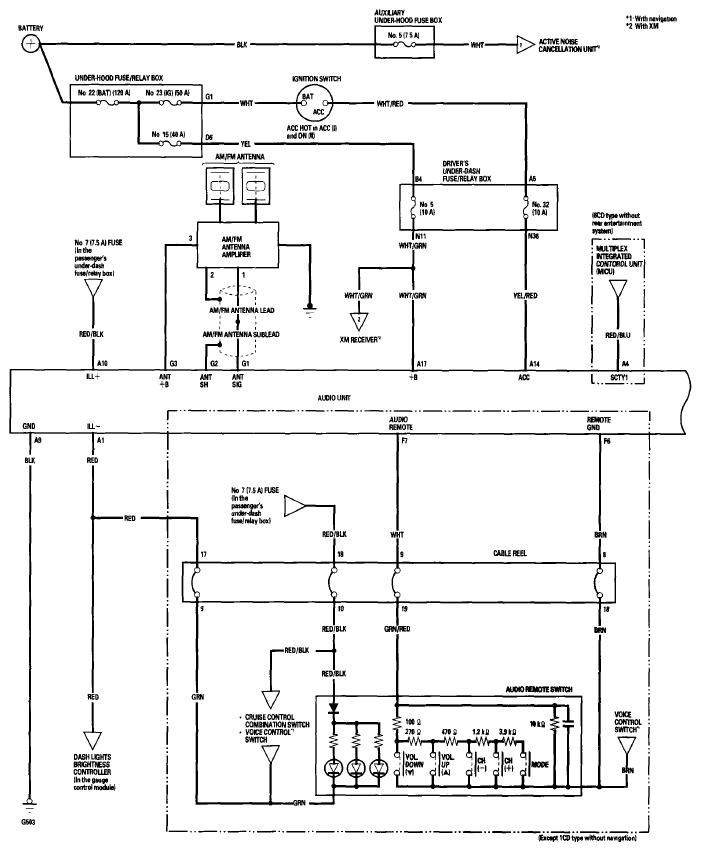

Fig 9: Audio System Circuit Diagram - 08-09 Models With Premium Audio System (1 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

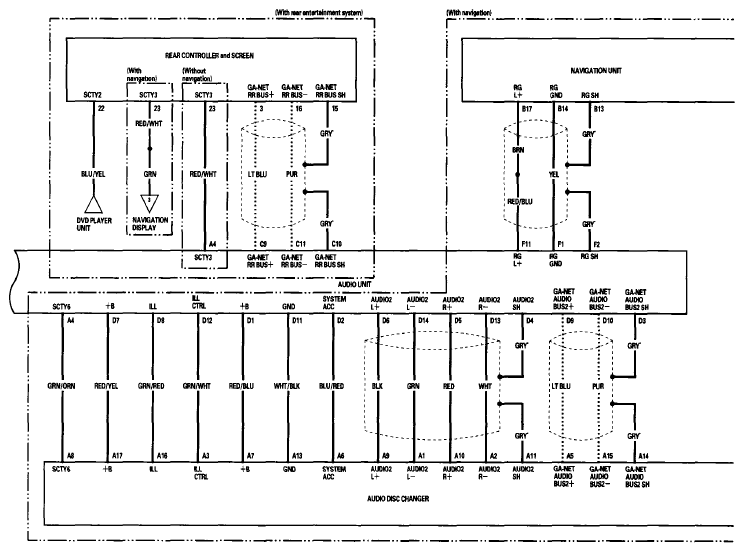

Fig 10: Audio System Circuit Diagram - 08-09 Models With Premium Audio System (2 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

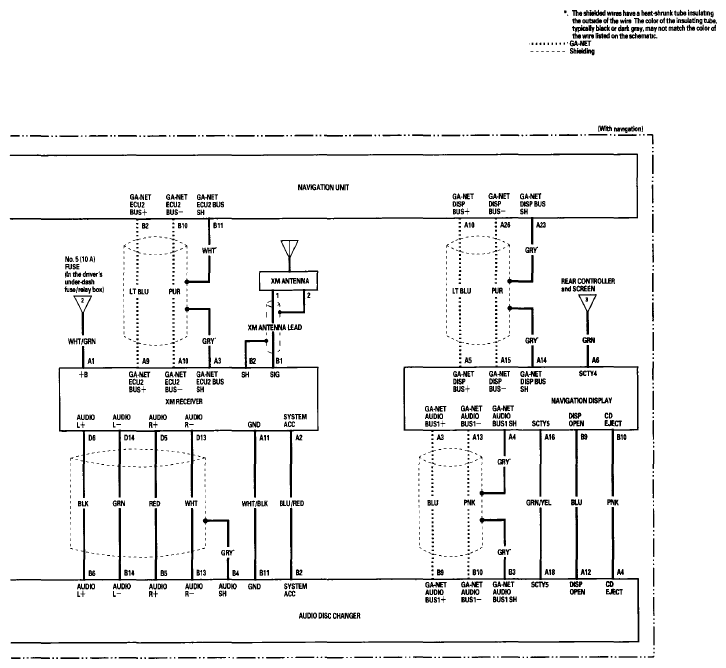

Fig 11: Audio System Circuit Diagram - 08-09 Models With Premium Audio System (3 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

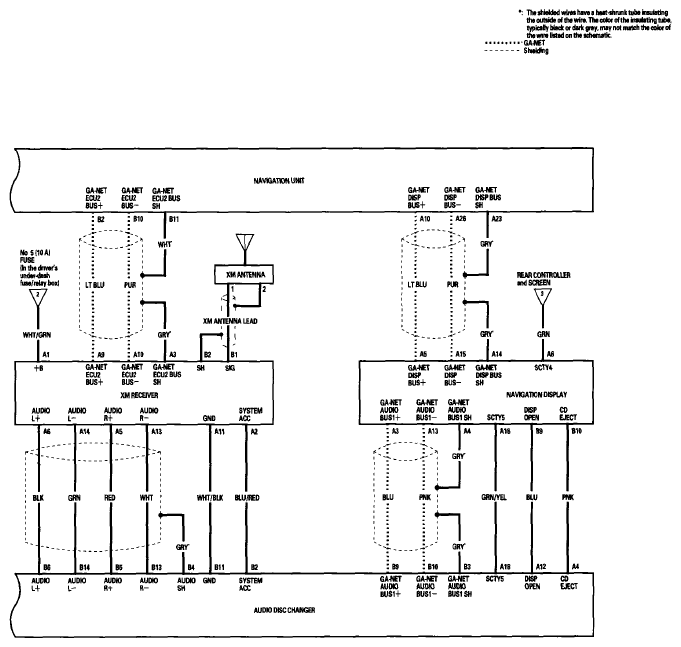

Fig 12: Audio System Circuit Diagram - 08-09 Models With Premium Audio System (4 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Audio System Circuit Diagram - 08-09 Models With Premium Audio System (5 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

'08-10 models without Premium Audio System

Fig 14: Audio System Circuit Diagram - 08-09 Models Without Premium Audio System (1 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Audio System Circuit Diagram - 08-09 Models Without Premium Audio System (2 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 16: Audio System Circuit Diagram - 08-09 Models Without Premium Audio System (3 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Audio System Circuit Diagram - 08-09 Models Without Premium Audio System (4 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 18: Audio System Circuit Diagram - 08-09 Models Without Premium Audio System (5 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
