Without navigation

Make sure you have the anti-theft codes for the audio system.
Remove the center panel (see DASHBOARD CENTER PANEL REMOVAL/INSTALLATION ).
Remove the bolts, then pull out the audio unit (A).

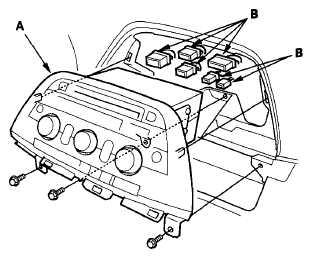

With premium audio system/6CD type

Fig 1: Identifying Audio Unit And Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

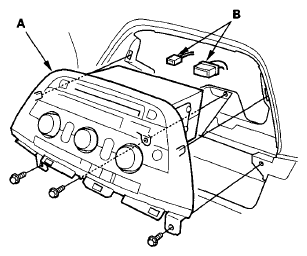

Without premium audio system/6CD type

Fig 2: Identifying Audio Unit And Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

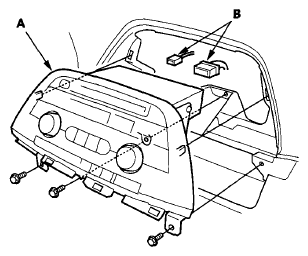

Without premium audio system/1CD type

Fig 3: Identifying Audio Unit And Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connectors (B), then remove the audio unit.
Remove the bolts, and the bracket (A).

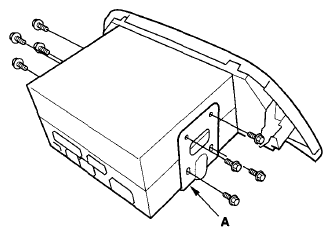

6CD type

Fig 4: Identifying Audio Unit Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

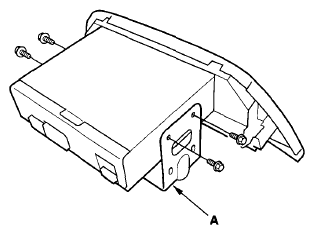

1CD type

Fig 5: Identifying Audio Unit Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the audio unit in the reverse order of removal, and note these items:
- Make sure all connectors and AM/FM antenna sublead are secure.
- Enter the anti-theft code for the audio system, then enter the audio presets, and set the clock.
