Audio Disc Changer Removal/Installation

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the headliner and display cover.
  1. Remove the navigation display (see NAVIGATION DISPLAY REMOVAL/INSTALLATION ).
  2. Remove the screws, then remove the bracket (A) and the audio disc changer (B).
    NOTE: When removing the audio disc changer, the bracket (A) must be completely removed to prevent damaging the audio disc changer.

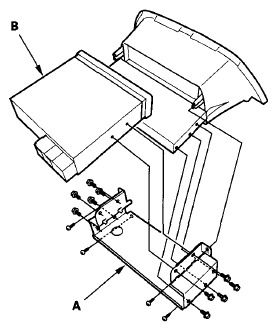

    Fig 1: Identifying Bracket And Audio Disc Changer
    G06278082Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the audio disc changer in the reverse order of removal.
