Heater Fan Switch Test

Check for continuity between the terminals in each switch position according to Fig 1.

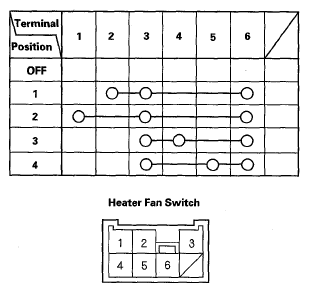

Fig 1: Checking For Continuity Between Terminals In Each Switch Position

Courtesy of AMERICAN HONDA MOTOR CO., INC.
