Headlight Relay: Inspection
WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

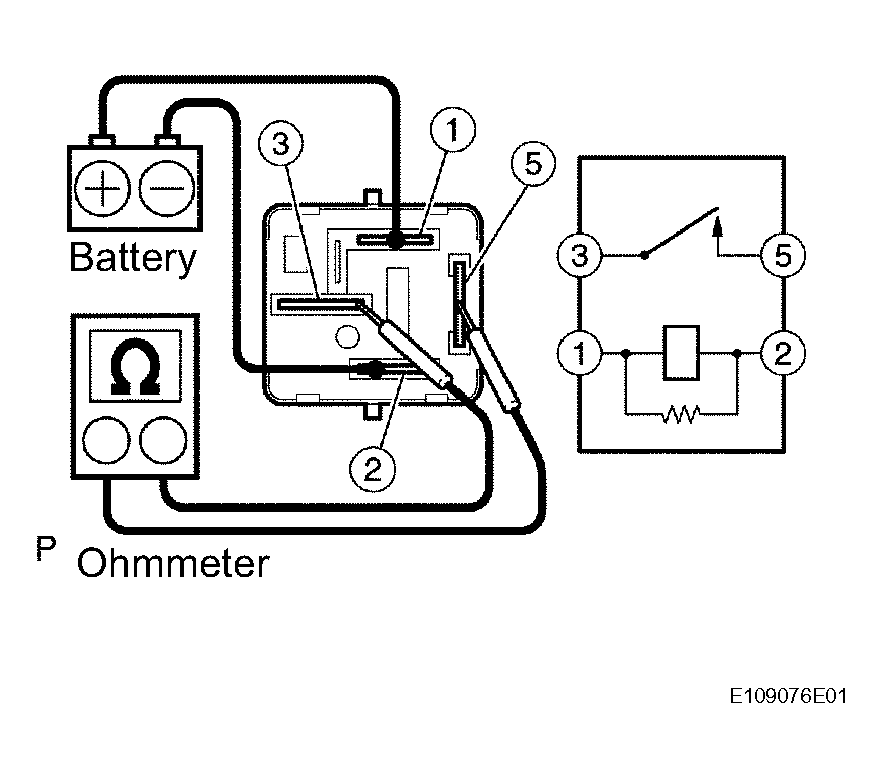

- INSPECT HEADLIGHT RELAY
- Check the resistance.
- Using an ohmmeter, measure the resistance between the terminals.
Standard
HEADLIGHT RELAY
| Tester Connection |
Specified Condition |
| 3-5 |
10 k or higher |
| 3-5 |
Below 1
(When battery voltage applied to terminals 1 and 2) |
If the result is not as specified, replace the headlight relay.
