Headlight Assembly: Components

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Headlight Components And Replacements (1 Of 2)
G04412435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

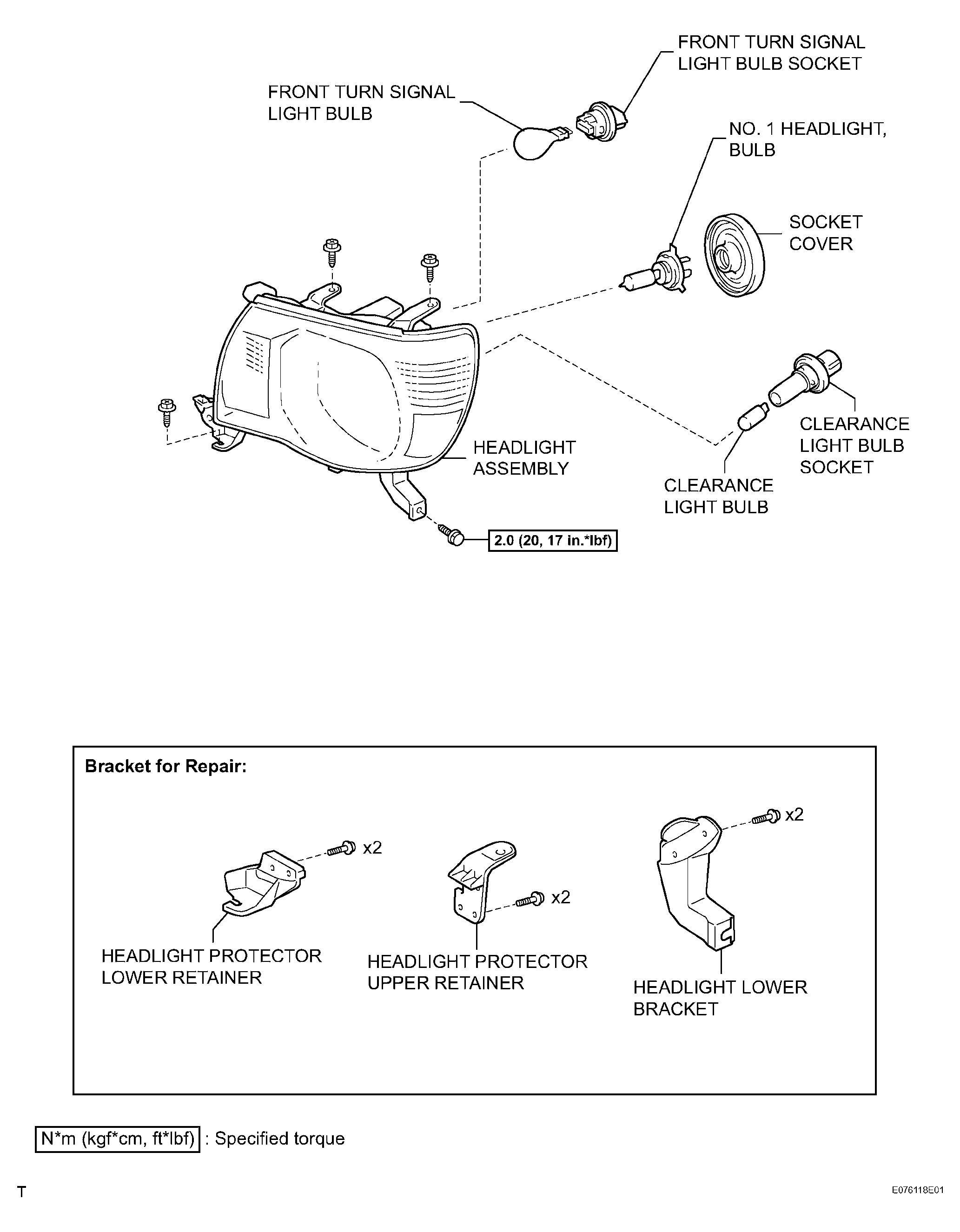

Fig 2: Identifying Headlight Components And Replacements (2 Of 2)
G04412436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
