DTC P0812 (65): Open in Transmission Range Switch ATP R Switch Circuit (A/T): Notes

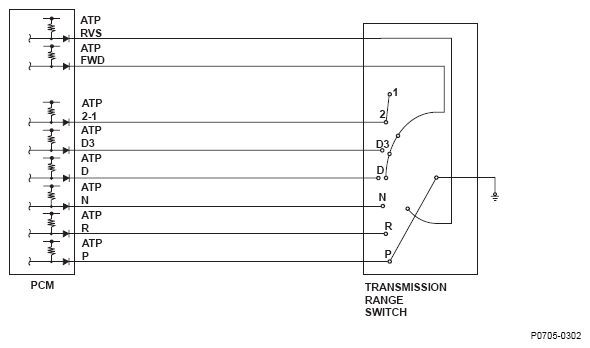

Fig 1: Transmission Range Switch ATP R Switch Circuit Diagram

Transmission range switch contact point input matrix

TRANSMISSION RANGE SWITCH CONTACT POINT INPUT MATRIX

Shift lever position	Input per switch
	P	R	RVS	N	D	D3	2/1	FWD
P	◦	X	X	X	X	X	X	X
R	X	◦	◦	X	X	X	X	X
N	X	X	X	◦	X	X	X	X
D	X	X	X	X	◦	X	X	◦
D3	X	X	X	X	X	X	X	◦
2	X	X	X	X	X	X	◦	◦
1	X	X	X	X	X	X	◦	X
◦: Closed X: Open
