Catalytic Converter Removal/Installation

  1. Remove the secondary HO2S (see SECONDARY HO2S REPLACEMENT ).
  2. Remove the TWC (A).

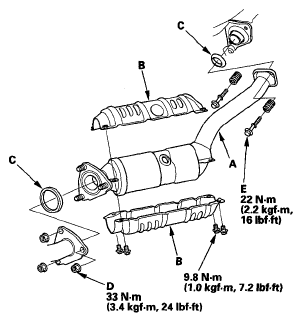

    Fig 1: TWC, Converter Covers, Gaskets, Self-Locking Nuts And Bolts With Torque Specifications
    G05454835
  3. Remove the converter covers (B).
  4. Install the parts in the reverse order of removal with new gaskets (C), new self-locking nuts (D), and new bolts (E).
