Exploded View

A/T model

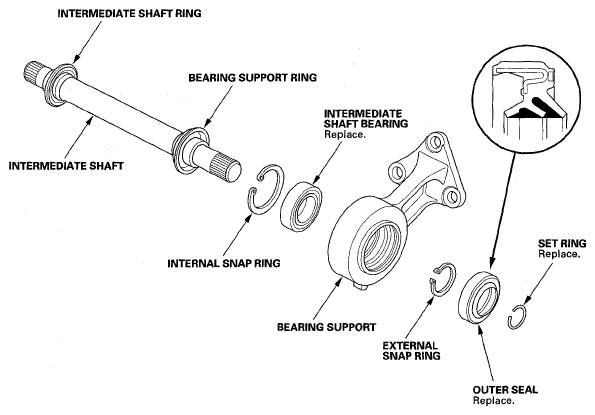

Fig 1: Exploded View Of Intermediate Shaft Reassembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Oil seal driver 07GAD-PH70201
• Half shaft driver 07NAF-SR30101
• Attachment, 52 x 55 mm 07746-0010400
• Attachment, 35 mm I.D. 07746-0030400
• Driver 07749-001000

1. Clean the disassembled parts with solvent, and dry them with compressed air. Do not wash the rubber parts with solvent.
2. Press the intermediate shaft bearing (A) into the bearing support (B) using the driver (C) and 52 x 55 mm attachment (D) and a press.
   Fig 2: Pressing Intermediate Shaft Bearing Into Bearing Support

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Seat the internal snap ring into the groove of the bearing support.
   Fig 3: Identifying Internal Snap Ring

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

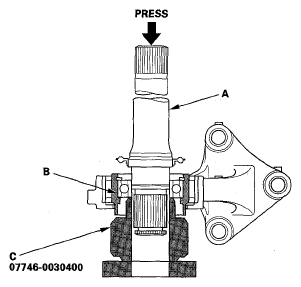

4. Press the intermediate shaft (A) into the shaft bearing (B) using the 35 mm I.D. attachment (C) and a press.
   Fig 4: Pressing Intermediate Shaft Into Shaft Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Set the external snap ring (A) into the groove of the intermediate shaft (B).
   Fig 5: Setting External Snap Ring Into Groove Of Intermediate Shaft

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install new outer seal (A) into the bearing support (B) using the oil seal driver (C) and half shaft driver (D) and a press.

Fig 6: Installing Outer Seal Into Bearing Support

Courtesy of AMERICAN HONDA MOTOR CO., INC.
