Exploded View

M/T model

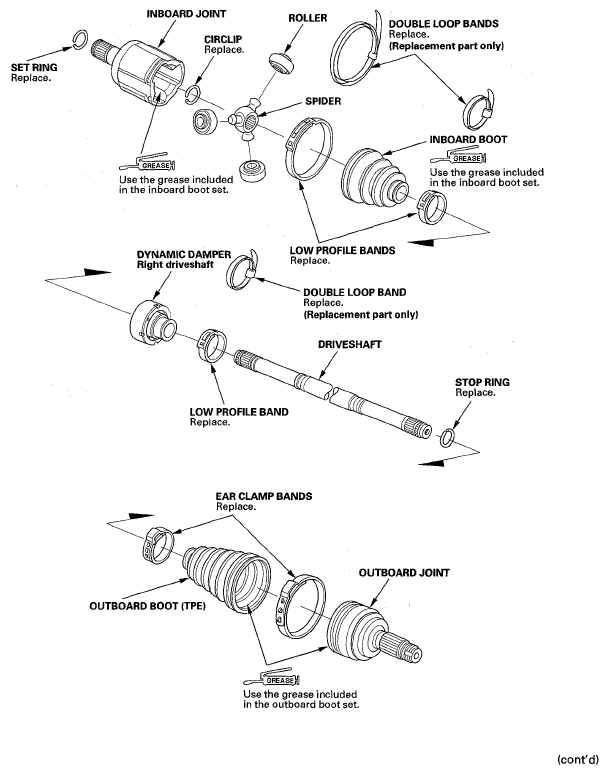

Fig 1: Exploded View Of Driveshaft Assembly - M/T Model

Courtesy of AMERICAN HONDA MOTOR CO., INC.

A/T model

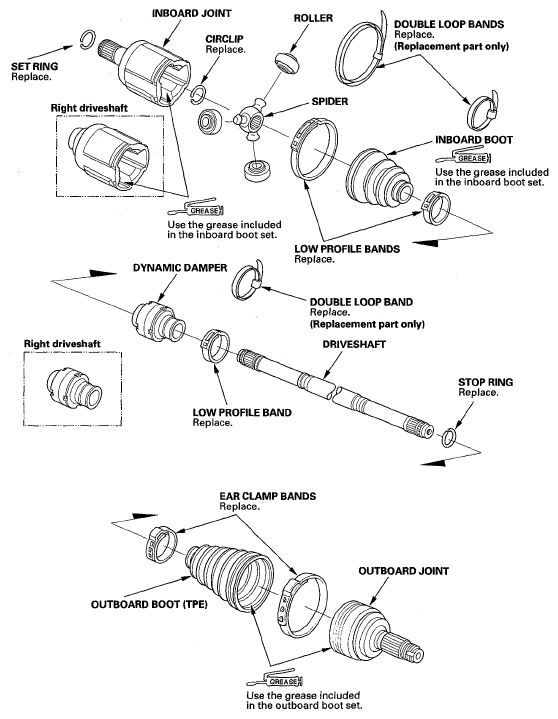

Fig 1: Exploded View Of Driveshaft Assembly - A/T Model

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

NOTE: Refer to Figure (M/T Model) or Fig 1 (A/T Model), as needed, during this procedure.
