Towing Converter Relay: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TOWING CONVERTER RELAY
    1. Install the towing converter relay with the bolt.

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    2. Connect the connector.

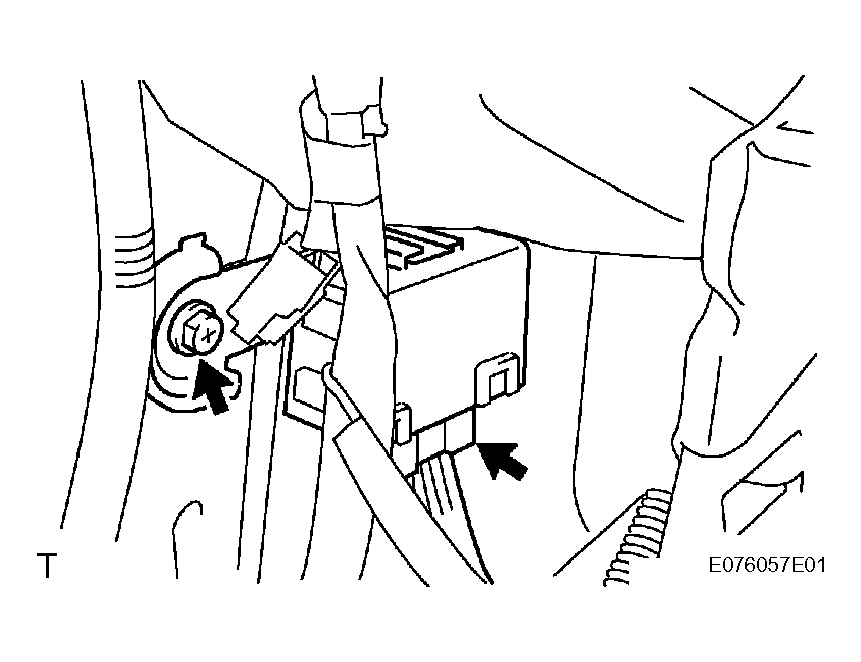

      Fig 1: Installing Towing Converter Relay
      G04412520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY W/PASSENGER AIRBAG ASSEMBLY (See  INSTALLATION  )
  3. CONNECT PASSENGER AIRBAG CONNECTOR
  4. INSTALL INSTRUMENT SIDE PANEL RH (See  INSTALLATION  )
  5. INSTALL INSTRUMENT LOWER COVER SUB-ASSEMBLY (See  INSTALLATION  )
  6. INSTALL LOWER INSTRUMENT PANEL LH (See  INSTALLATION  )
  7. INSTALL INSTRUMENT PANEL LOWER FINISH PANEL SUB-ASSEMBLY RH (See  INSTALLATION  )
  8. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See  INSTALLATION  )
  9. INSTALL INSTRUMENT CLUSTER CENTER FINISH PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  10. INSTALL COMBINATION METER ASSEMBLY (See  INSTALLATION  )
  11. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  12. INSTALL LOWER NO.1 INSTRUMENT PANEL FINISH PANEL (See  INSTALLATION  )
  13. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (See  REASSEMBLY  )
  14. INSTALL RADIO RECEIVER ASSEMBLY (See  INSTALLATION  )
  15. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (See  INSTALLATION  )
  16. INSTALL FRONT CONSOLE BOX (for Manual Transmission on Bench Seat Type) (See  INSTALLATION  )
  17. INSTALL FRONT CONSOLE BOX (for Automatic Transmission on Bench Seat Type) (See  INSTALLATION  )
  18. INSTALL FRONT CONSOLE BOX (for Manual Transmission on Separate Seat Type) (See  INSTALLATION  )
  19. INSTALL FRONT CONSOLE BOX (for Automatic Transmission on Separate Seat Type) (See  INSTALLATION  )
  20. INSTALL INSTRUMENT PANEL CUP HOLDER TRAY (for Automatic Transmission on Separate Seat Type) (See  INSTALLATION  )
  21. INSTALL REAR CONSOLE BOX ASSEMBLY (for Separate Seat Type) (See  INSTALLATION  )
  22. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (for Manual Transmission on Separate Seat Type) (See  INSTALLATION  )
  23. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (for Automatic Transmission on Separate Seat Type) (See  INSTALLATION  )
  24. INSTALL INSTRUMENT PANEL HOLE COVER (for Lever Type Parking Brake) (See  INSTALLATION  )
  25. INSTALL INSTRUMENT PANEL UNDER TRAY (for Pedal Type Parking Brake) (See  INSTALLATION  )
  26. INSTALL FRONT PILLAR GARNISH LH (for Regular Cab) (See  INSTALLATION  )
  27. INSTALL FRONT PILLAR GARNISH LH (for Access Cab) (See  INSTALLATION  )
  28. INSTALL FRONT PILLAR GARNISH LH (for Double Cab) (See  INSTALLATION  )
  29. INSTALL FRONT PILLAR GARNISH RH (for Regular Cab) (See  INSTALLATION  )
  30. INSTALL FRONT PILLAR GARNISH RH (for Access Cab) (See  INSTALLATION  )
  31. INSTALL FRONT PILLAR GARNISH RH (for Double Cab) (See  INSTALLATION  )
  32. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  33. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  34. INSTALL COWL SIDE TRIM BOARD LH (for Regular Cab) (See  INSTALLATION  )
  35. INSTALL COWL SIDE TRIM BOARD LH (for Access Cab) (See  INSTALLATION  )
  36. INSTALL COWL SIDE TRIM BOARD LH (for Double Cab) (See  INSTALLATION  )
  37. INSTALL COWL SIDE TRIM BOARD RH (for Regular Cab) (See  INSTALLATION  )
  38. INSTALL COWL SIDE TRIM BOARD RH (for Access Cab) (See  INSTALLATION  )
  39. INSTALL COWL SIDE TRIM BOARD RH (for Double Cab) (See  INSTALLATION  )
  40. INSTALL FRONT DOOR SCUFF PLATE LH (for Regular Cab) (See  INSTALLATION  )
  41. INSTALL FRONT DOOR SCUFF PLATE LH (for Access Cab) (See  INSTALLATION  )
  42. INSTALL FRONT DOOR SCUFF PLATE LH (for Double Cab) (See  INSTALLATION  )
  43. INSTALL FRONT DOOR SCUFF PLATE RH (for Regular Cab) (See  INSTALLATION  )
  44. INSTALL FRONT DOOR SCUFF PLATE RH (for Access Cab) (See  INSTALLATION  )
  45. INSTALL FRONT DOOR SCUFF PLATE RH (for Double Cab) (See  INSTALLATION  )
  46. INSTALL FRONT FLOOR FOOTREST (See  FRONT FLOOR FOOTREST  )
  47. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

  48. INSPECT SRS WARNING LIGHT

    (See TERMINALS OF ECU )
