Rear Shock Absorber: Components

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

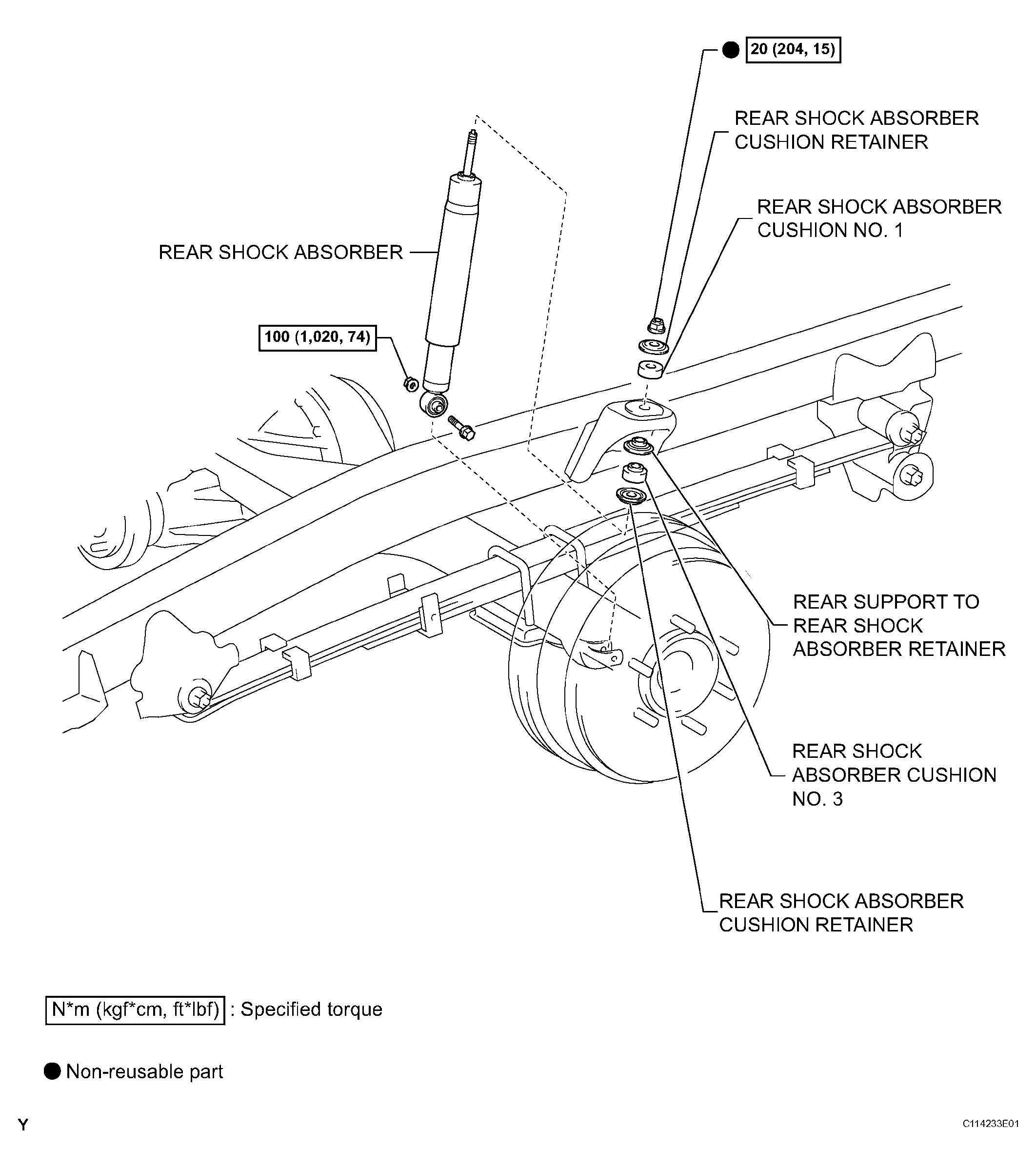

Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications
G04410485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
