Rear Leaf Spring: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR WHEEL
  2. REMOVE SPARE TIRE (for 4WD and Pre-Runner)
  3. SEPARATE REAR SHOCK ABSORBER
    1. Support the rear axle housing.
    2. Remove the bolt, nut and washer.
    3. for 2WD:
      1. Separate the shock absorber from the rear spring seat.
    4. for 4WD and Pre-Runner:
      1. Separate the shock absorber from the rear axle housing.

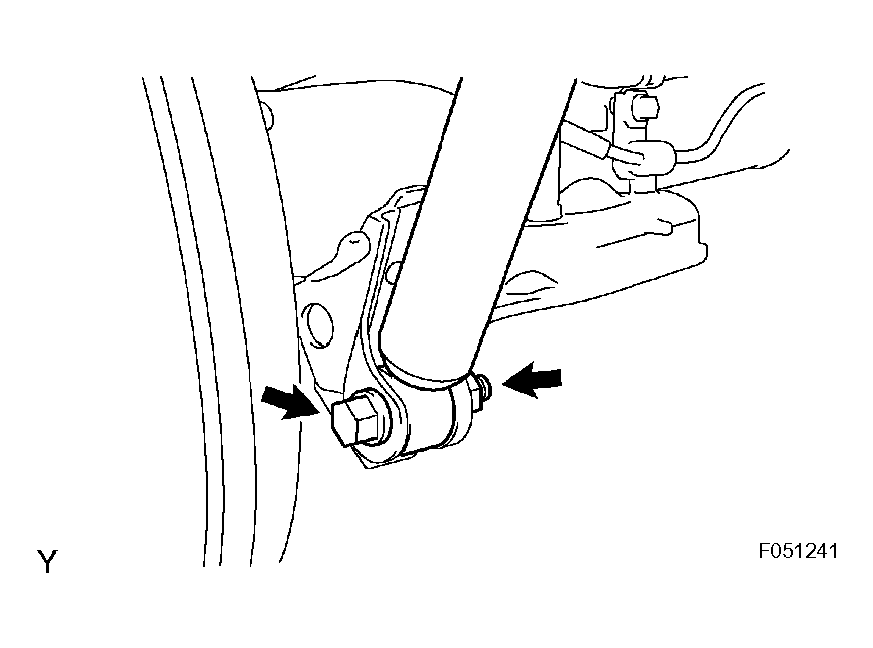

        Fig 1: Removing Rear Shock Absorber Bolt & Nut
        G04410465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. SEPARATE PARKING BRAKE CABLE ASSEMBLY NO. 3
    1. Remove the bolt, then separate the parking brake cable.

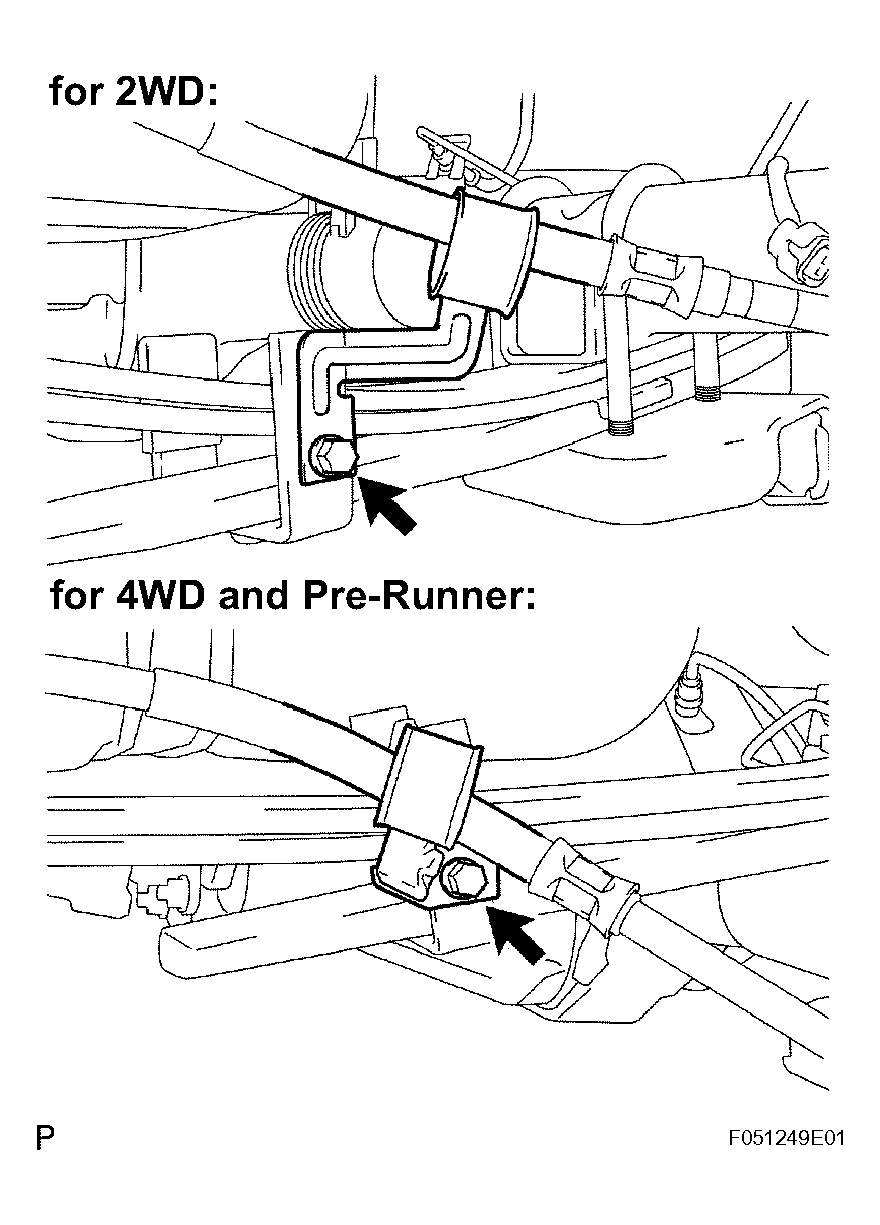

      Fig 2: Separating Parking Brake Cable
      G04410466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SPRING BUMPER NO. 1 (for 2WD)
    1. Remove the 2 nuts and spring bumper.

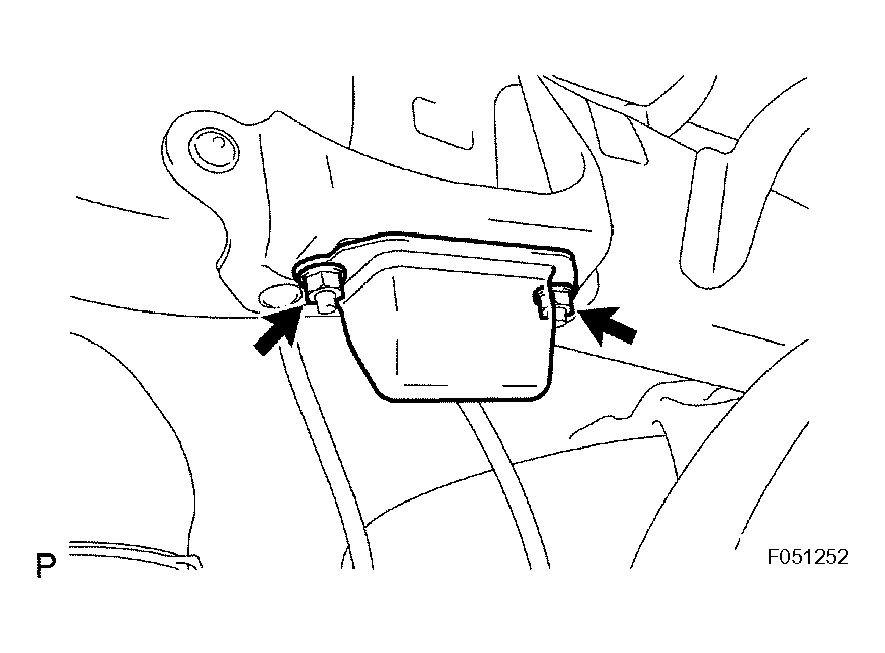

      Fig 3: Removing Rear Spring Bumper & Nuts
      G04410467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR SPRING U BOLT (for 2WD)
    1. Remove the 4 nuts and 4 washers.
    2. Remove the spring seat and 2 U-bolts.

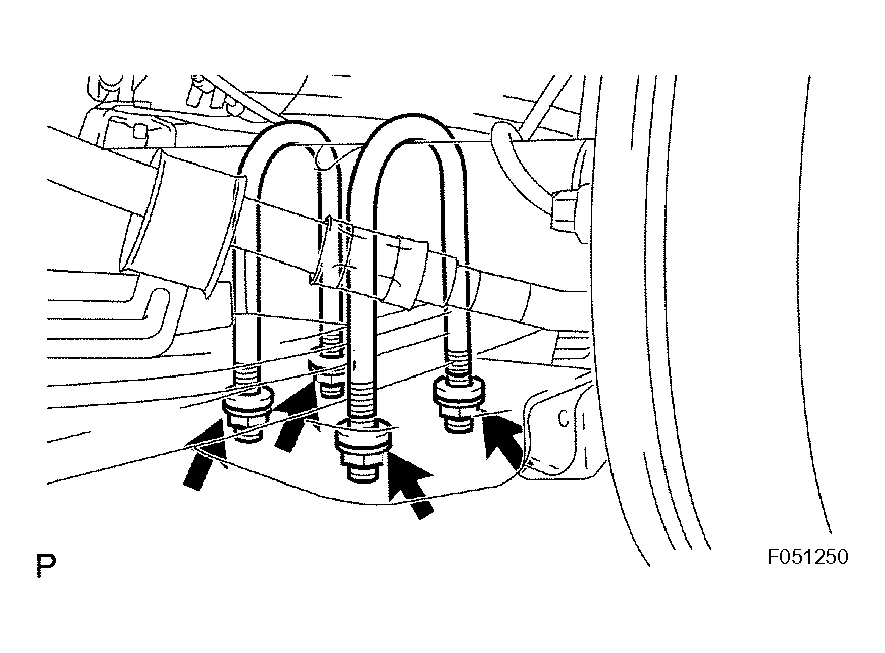

      Fig 4: Removing Spring Seat & U-Bolts (2WD)
      G04410468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR SPRING U BOLT (for 4WD and Pre-Runner)
    1. Remove the 4 nuts and 4 washers.
    2. Remove the spring seat and 2 U-bolts.
    3. Remove the spring bumper.

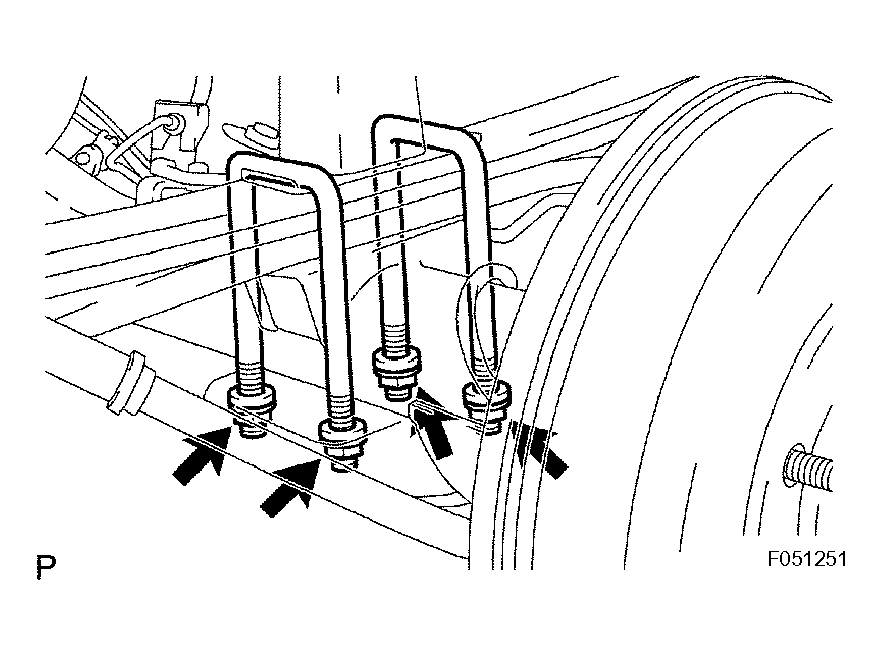

      Fig 5: Removing Spring Seat & U-Bolts (4WD & Pre-Runner)
      G04410469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR LEAF SPRING
    1. Remove the nut, washer and through bolt.

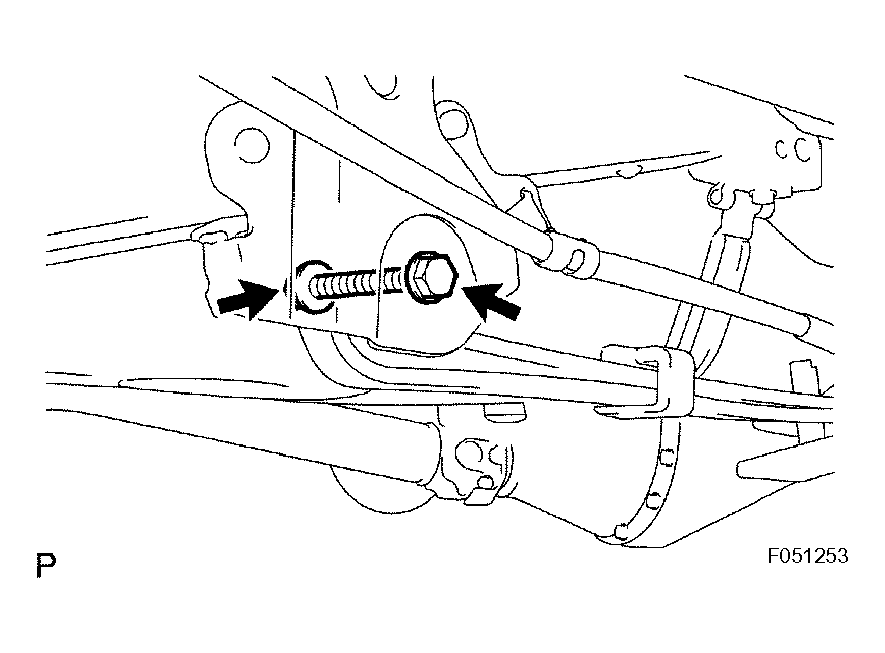

      Fig 6: Removing Nut, Washer & Through Bolt (1 Of 2)
      G04410470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut, washer and through bolt.
      NOTE: Be careful not to drop the spring when removing the through bolt.
    3. Remove the spring

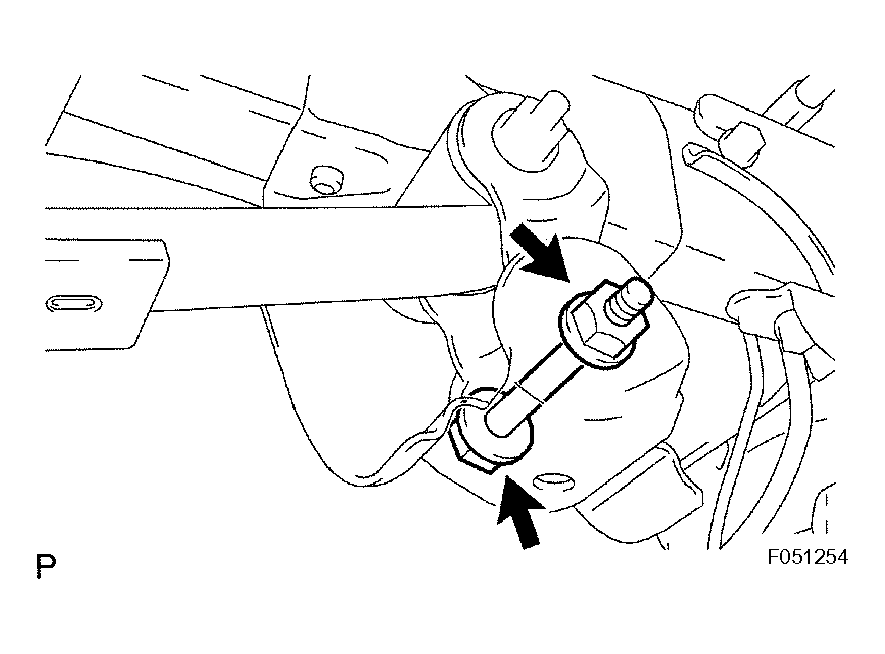

      Fig 7: Removing Nut, Washer & Through Bolt (2 Of 2)
      G04410471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR SPRING SHACKLE SUB-ASSEMBLY NO. 2
    1. Remove the nut, washer, through bolt and shackle.

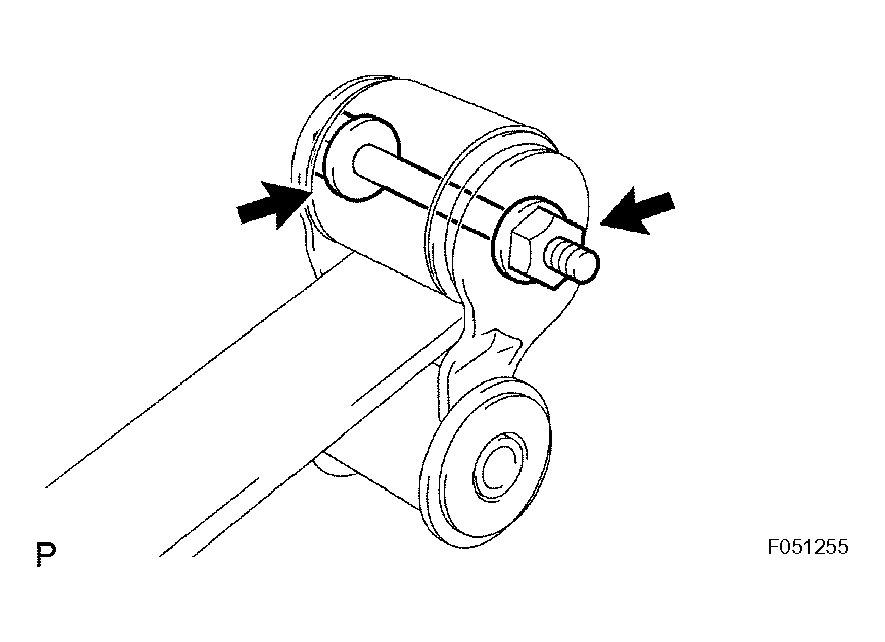

      Fig 8: Removing Nut, Washer, Through Bolt & Shackle
      G04410472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
