DTC P0974 (7): Open in Shift Solenoid Valve A Circuit (A/T): Notes

Fig 1: Open In Shift Solenoid Valve A Circuit Diagram

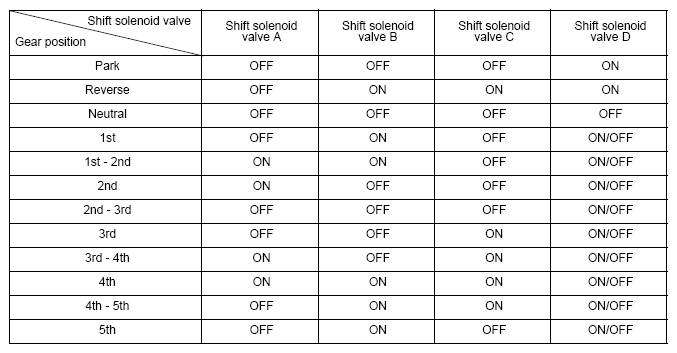

Shift solenoid valve driving signal combination table

Fig 2: Gear Ratio And Shift Status Graph
