With Multi-Information Display

  1. Turn the vehicle to the ON mode.
  2. If system messages are displayed, press the INFOMATION switch (see Fig 1) or Audio Remote/Multi-Information Display Switch to cancel the display until the MAINTENANCE MINDER icon is displayed, then press the SOURCE/ENTER button.
  3. Display shows the remaining engine oil life, and then press and hold the SOURCE/ENTER button for 10 seconds or more. The MAINTENANCE RESET mode appears on the multi-information display.
    NOTE: To cancel the MAINTENANCE RESET mode, press the Audio Remote/Multi-Information Display Switch to select CANCEL, then press the SOURCE/ENTER button.
  4. If you wish to reset all the maintenance items shown on the display, select "All Due Items" by pressing the Audio Remote/Multi-Information Display Switch and press the SOURCE/ENTER button. If you reset each maintenance item individually, select an item (complete list of maintenance main items and sub items) you wish to reset by pressing the Audio Remote/Multi-Information Display Switch and press the SOURCE/ENTER button.
  5. The maintenance item codes will disappear, and the engine oil life will reset to 100%.

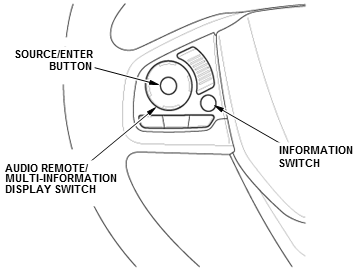

Fig 1: Resetting Oil Life Display (Steering Wheel Controls)
G00561384Courtesy of AMERICAN HONDA MOTOR CO., INC.
