Intermediate Shaft Installation

Install the new set ring (A).

Fig 1: Identifying Set Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Clean the areas where the intermediate shaft contacts the differential thoroughly with solvent or brake cleaner, and dry with compressed air.
NOTE: Do not wash the rubber parts with solvent.
Insert the intermediate shaft assembly (A) into the differential until the set ring locks in the groove.
NOTE: Insert the intermediate shaft horizontally to prevent damaging the differential oil seal (B).

Fig 2: Identifying Intermediate Shaft Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

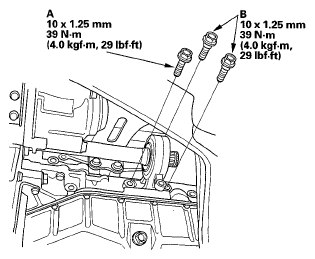

Install the flange bolt (A) and two dowel bolts (B).

Fig 3: Flange Bolt & Dowel Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

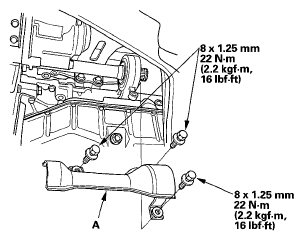

Install the heat cover (A), and tighten the three bolts.

Fig 4: Heat Cover & Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the right driveshaft (see FRONT DRIVESHAFT INSTALLATION ).
Refill the transmission with the recommended transmission fluid:
- Manual transmission (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT )
- Automatic transmission (see ATF REPLACEMENT )
Check the wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).
Test-drive the vehicle.
