Front Driveshaft Reassembly
>>
Exploded View
Exploded View

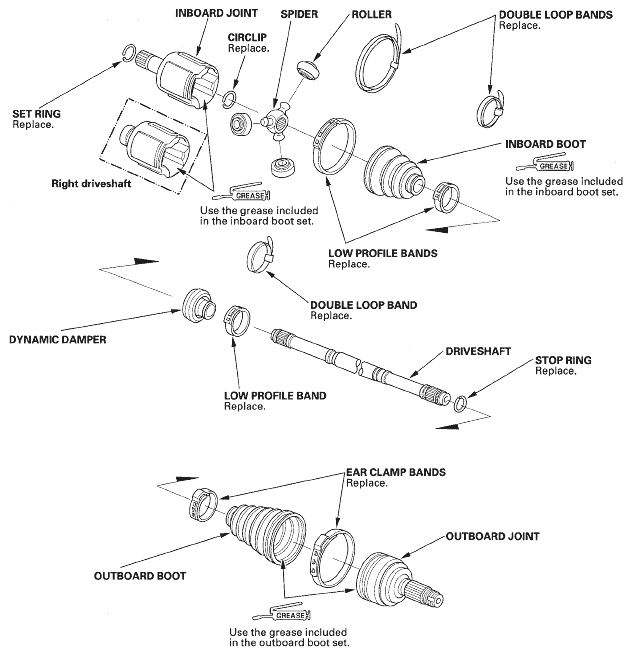

Fig 1: Identifying Front Driveshaft Replacement Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
