Dynamic Damper Replacement

Remove the inboard joint (see INBOARD JOINT SIDE ).
Remove the dynamic damper bands (see step 1 ).
Remove the dynamic damper (A).

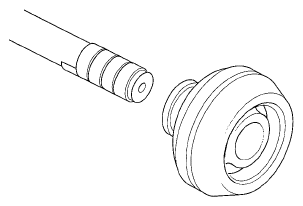

Fig 1: Identifying Dynamic Damper
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new dynamic damper.
Adjust the specified distance (A) between the outbard joint side and the dynamic damper edge.
'07-08 models: 311.0-315.0 mm (12.24-12.40 in.)

'09-10 models: 310.5-315.5 mm (12.22-12.42 in.)

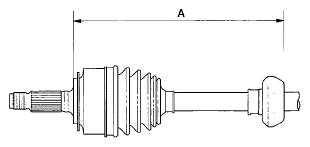

Fig 2: Identifying Position Of Dynamic Damper
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the dynamic damper band (see step 10 ).
Install the inboard joint (see INBOARD JOINT SIDE ).
