VSA Sensor Neutral Position Memorization

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not press the brake pedal during this procedure.

Park the vehicle on a flat and level surface, with the steering wheel in the straight ahead position.
With the ignition switch in LOCK (0), connect the HDS to the data link connector (DLC) (A) under the driver's side of the dashboard.

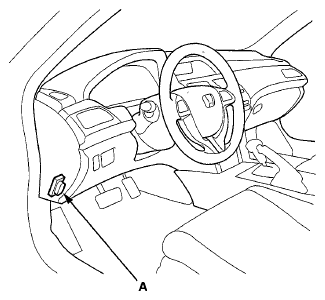

Fig 1: Identifying Data Link Connector (DLC)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to ON (II).
Make sure the HDS communicates with the vehicle and the VSA modulator-control unit. If it doesn't troubleshoot the DLC circuit (see DLC CIRCUIT TROUBLESHOOTING ).
Select VSA ADJUSTMENT, then select ALL SENSORS with the HDS, and follow the screen prompts.
NOTE: See the HDS Help menu for specific instructions.
Turn the ignition switch to LOCK (0).
