Starter Removal and Installation: Removal
- Do the battery removal procedure (see REMOVAL
).
- Remove the intake manifold (see REMOVAL
).

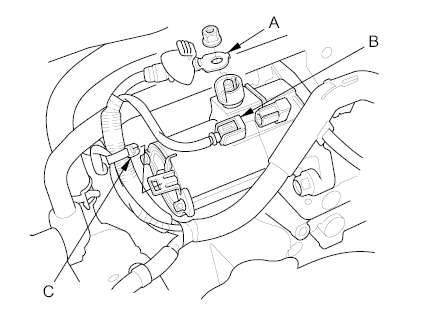

- Disconnect the positive starter cable (A) and the S terminal connector (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the harness clamp (C).

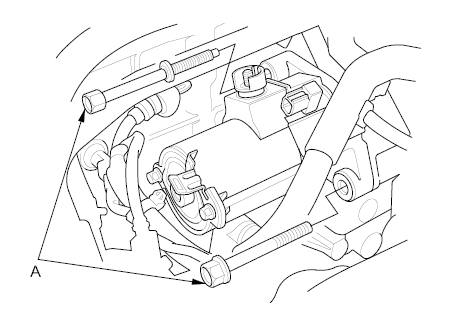

- Remove the two bolts (A) holding the starter, then remove the starter.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
