Throttle Body Disassembly/Reassembly

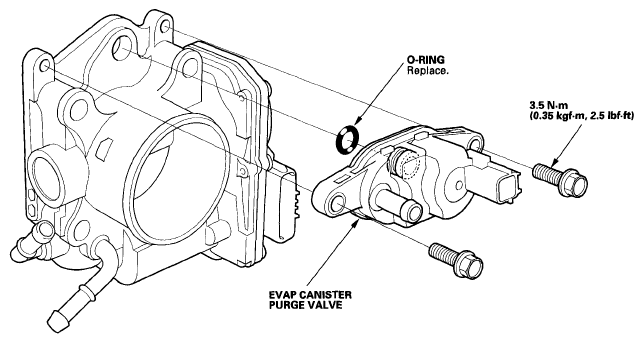

Fig 1: Disassembly/Reassembly Of Throttle Body (With Specifications)

G04665532

Courtesy of AMERICAN HONDA MOTOR CO., INC.
