Resonator Removal/Installation

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Remove the bolts (A), and the intake air ducts (B).

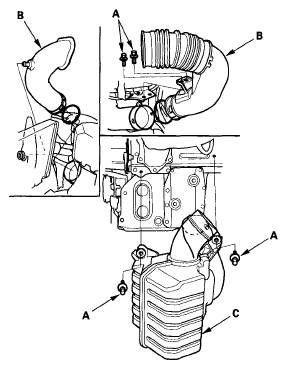

    Fig 1: Removing Intake Air Ducts
    G04665528Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the resonator (C).
  4. Install the parts in the reverse order of removal.
