BCM Module Removal/Installation

IMA components are located in this area. The IMA is a high-voltage system. You must be familiar with the IMA system before working on or around it. Make sure you have read the IMA service precautions before doing repairs or service (see SERVICE PRECAUTIONS  ).

1. Remove the IPU lid (see IPU LID REMOVAL/INSTALLATION  ).
2. Disconnect BCM module connectors (A).

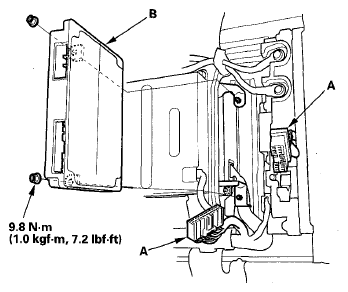

   Fig 1: BCM Module Connectors With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the BCM module (B).
4. Install the parts in the reverse order of removal.
