MAP Sensor Replacement

  1. Disconnect the MAP sensor 3P connector (A).

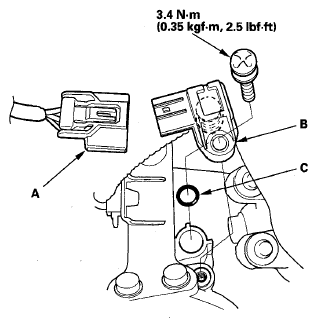

    Fig 1: MAP Sensor 3P Connector, MAP Sensor And O-Ring With Torque Specifications
    G06228738Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the MAP sensor (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
