Knock Sensor Replacement

  1. Remove the intake manifold (see INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  2. Disconnect the knock sensor 1P connector (A).

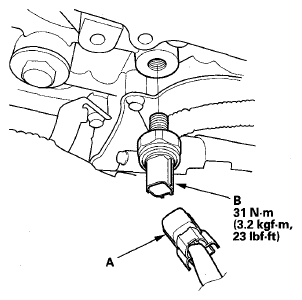

    Fig 1: Lnock Sensor 1P Connector And Knock Sensor 1P With Torque Specifications
    G06228742Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the knock sensor (B).
  4. Install the parts in the reverse order of removal.
